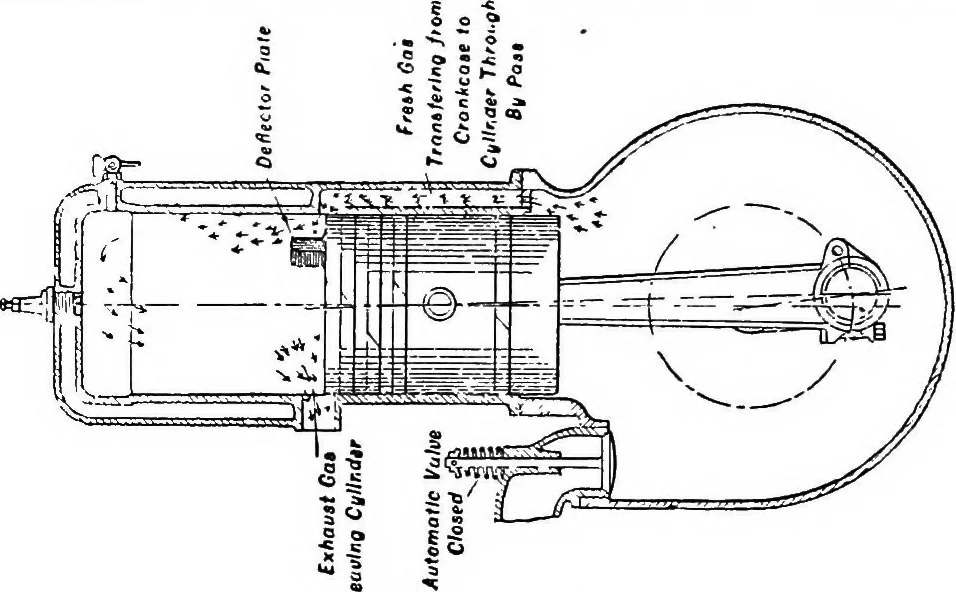

the piston uncovers the inlet portopposite the exhaust and permits the fresh gas to bypassthrough the transfer passage from the engine base to thecylinder. The conditions with the intake and exhaustport fully opened are clearly shown at Fig. 8, C. Thedeflector plate on the top of the piston directs…
