A practical treatise on modern gas and oil engines (1902)
Grover, Frederick · Manchester, The Technical Publishing Co., Limited; [etc., etc.] · leaf 342

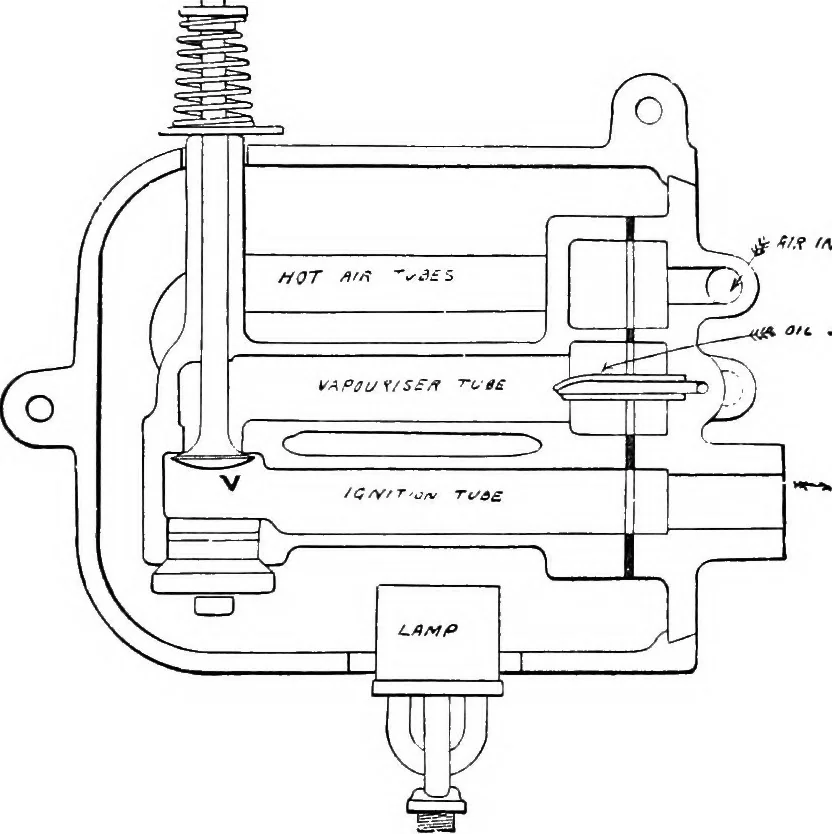

theadditional parts required to vaporise the oil. A longitudinal THE FIELDING OIL ENGINE. 331 section of the vaporiser is shown in fig. 164. This vaporiserconsists of two tubes, one above the other, the lower onebeing heated by the lamp to a bright red, whilst the upperone is kept at a lower… … oit. ^tfr Fia. 164. -The Fielding Vapoiisor. is as follows : During the outstroke of the engine piston, airis drawn into the cylinder through a valve in the combustionchamber (not shown). The valve V also opens, and a currentof hot air sweeps through the ignition tube into the cylinder.Oil vapour,…
Internal combustion engines
