Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 431

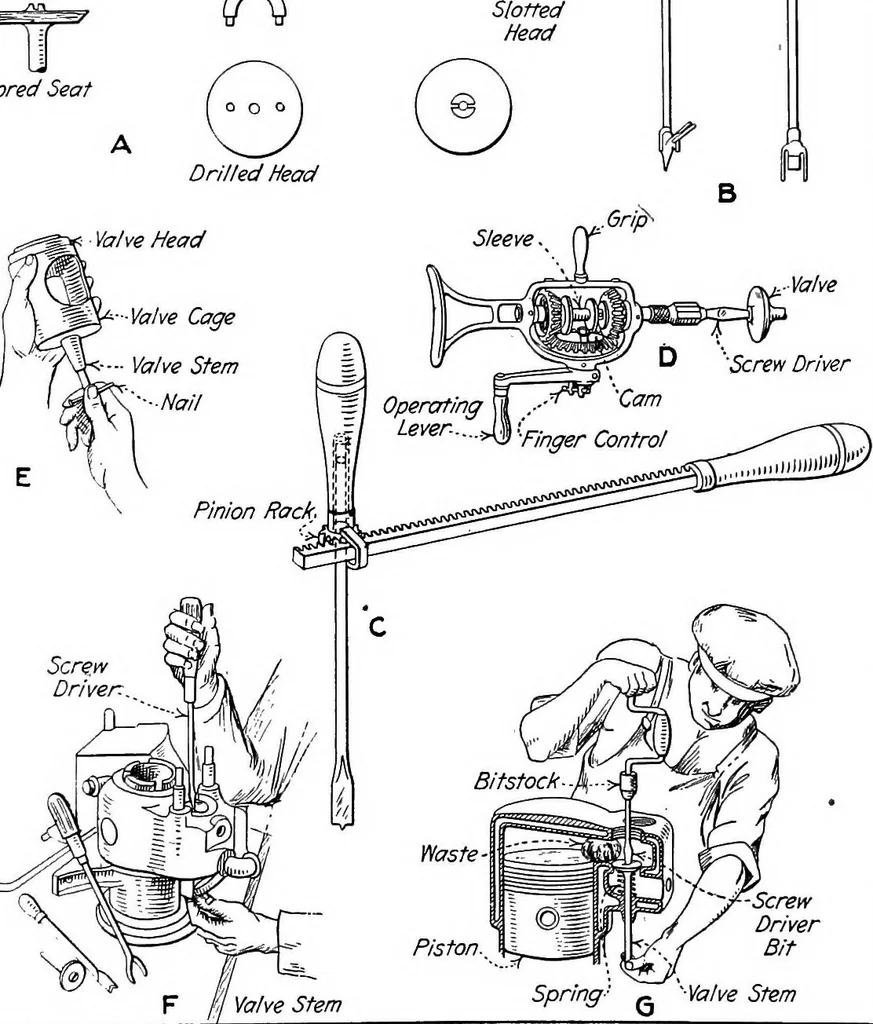

Valve Head -Valve Cage ■■ Valve Stem■Nail … Scre.ivDriven. -ScrewDriverBit Spring- -. Valve Stem Fig. 184.—Tools and Processes Utilized in Valve Grinding. at each end to engage similar members on the bevel pin-ions and lock these to the chuck stem, one at a time. Thebevel gear carries a cam-piece which moves the clutch Valve Grinding…
