Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 477

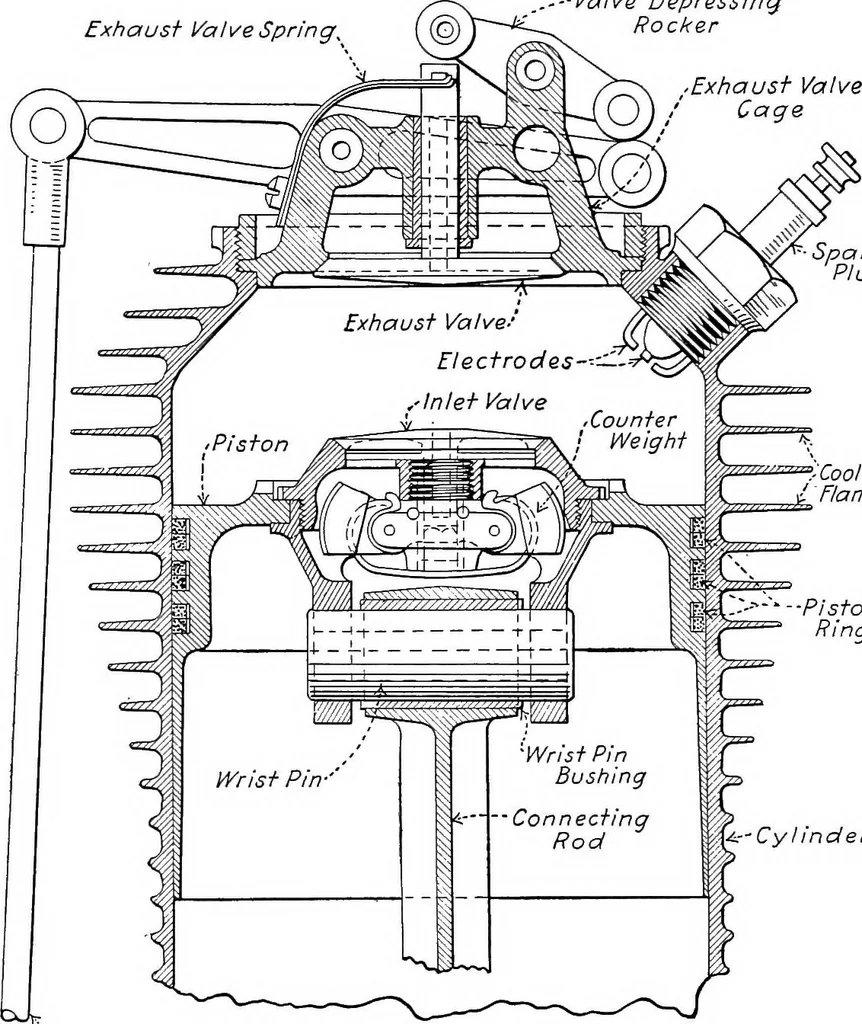

a collar on its extremity. On the seven-cylindermodel the movement is reversed, the valve being openedon the downward pull of the push rod, this lifting theouter extremity of the main rocker arm, which tips asecondary and smaller rocker arm in direct contact with 476 Aviation Engines the extremity… … ■PistonRings u.— Cylinder Valve Actuating Push Rod Fig. 201.—Sectional View of Early Type Gnome Cylinder and PistonShowing Construction and Application of Inlet and Exhaust Valves. The pistons, like the cylinders, are machined out ofthe solid bar of nickel steel, and have a portion of theirwall cut…
Airplanes
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
