Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 495

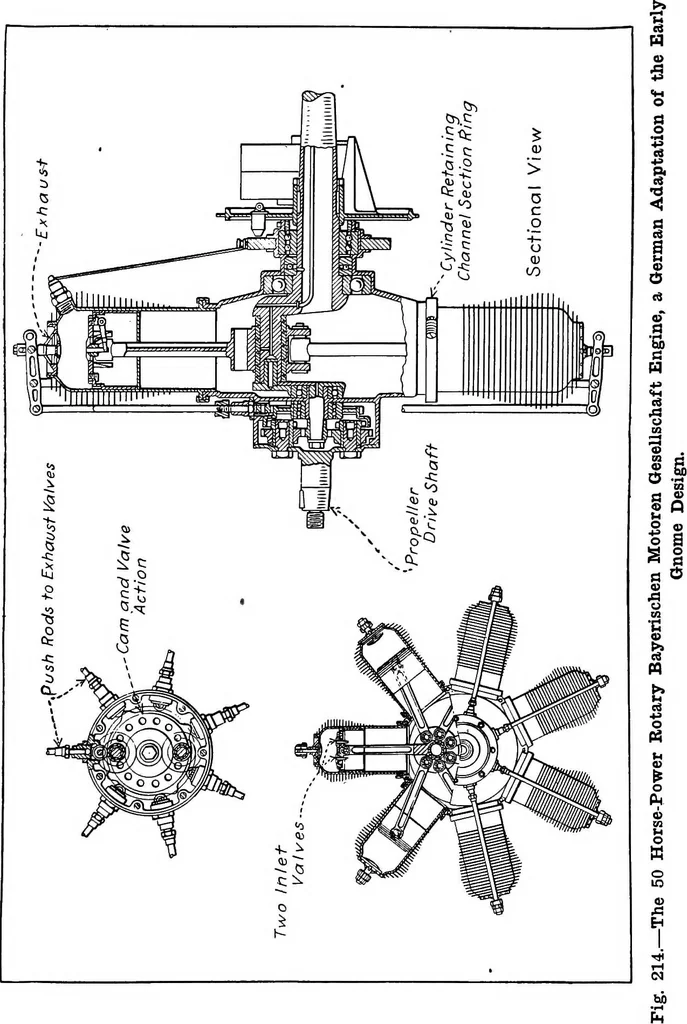

emist present in the engine interior as an oil of mineralderivation would be. GERMAN GNOME TYPE ENGINE A German adaptation of the Gnome design is shownat Fig. 214. This is known as the Bayerischen MotorenGesellshaft engine and the type shown is an early designrated at 50 horse-power. The bore is… … Le Rhone Rotary Motor 495 are carried in the piston top instead of one. The valveoperating arrangement is different also, as a single fourpoint cam is used to operate the seven exhaust valves.It is driven by epicyclic gearing, the cam being driven byan internal gear machined integrally with it, the…
Airplanes
