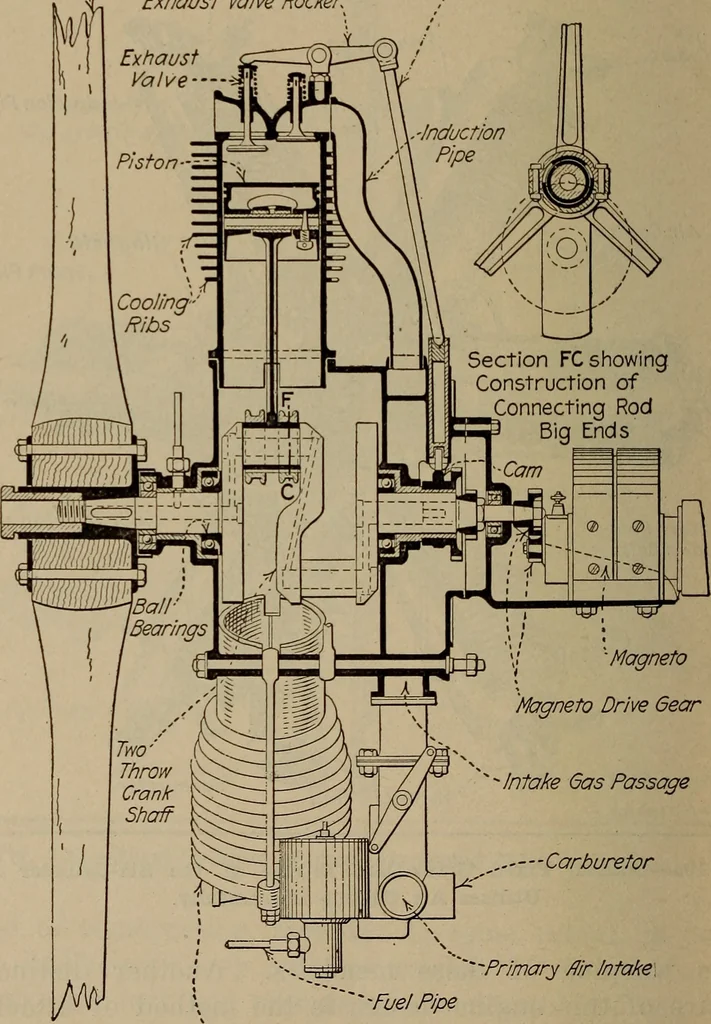

ngine design is the method of attachingthe Zenith carburetor to an annular chamber surroundingthe rear portion of the crank-case from which the intakepipes leading to the intake valves radiate. The magneto 466 Aviation Engines is the usual six-cylinder form having the armature gearedto revolve at… … MagnetoMagneto Drive Gear ^-Intake Gas Passage ..---- Carburetor ~~Primary /fir Intake. ~-EueI Pipe77/r Cooled Cylinder Fig. 195.—Sectional View Showing Internal Parts of Six-Cylinder AnzaniEngine, with Starwise Disposition of Cylinders.
