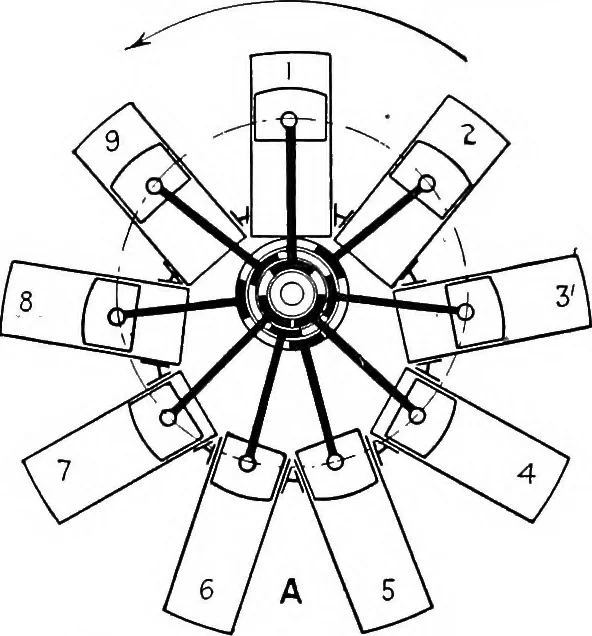

are employed in cylinders numbers 2,5, and 8. The peculiar profile of the inlet and exhaustcam plates are shown at C, Fig. 219, while the construc-tion of the wrist-pin, wrist-pin bushing and piston areclearly outlined at the sectional view at E. The method 500 Aviation Engines of valve actuation… … & ShortRod End Feeton*l-4-7 . Medium Rod End Feeton*3-6-9 0 Diagram Showing ConnectingRod Assembly Lonq Rod End Feet on*2-5-8 Arrangement of Curved Bearingson Connecting Rod Ends i —/- C Piston . -^ZZZZZZZZ. Wrist Pin. ^/m .Wr at Pinlj% / Bushing
