Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 501

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 501

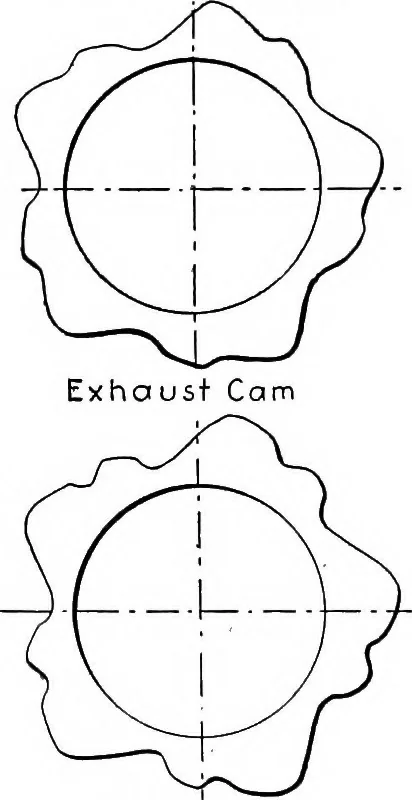

.-PisionRingGrooves -WnstPmRetainingScrew ^■•Connecting Rod … inta ke Cam Fig. 219.—Diagrams Showing Important Components of Le Rhone Motor. has a roller at one end bearing on one cam while theroller or cam follower at the other end bears on the othercam. The valve rocker arm actuating rod is, of course,operated by this simple lever and is attached to it…
