Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 505

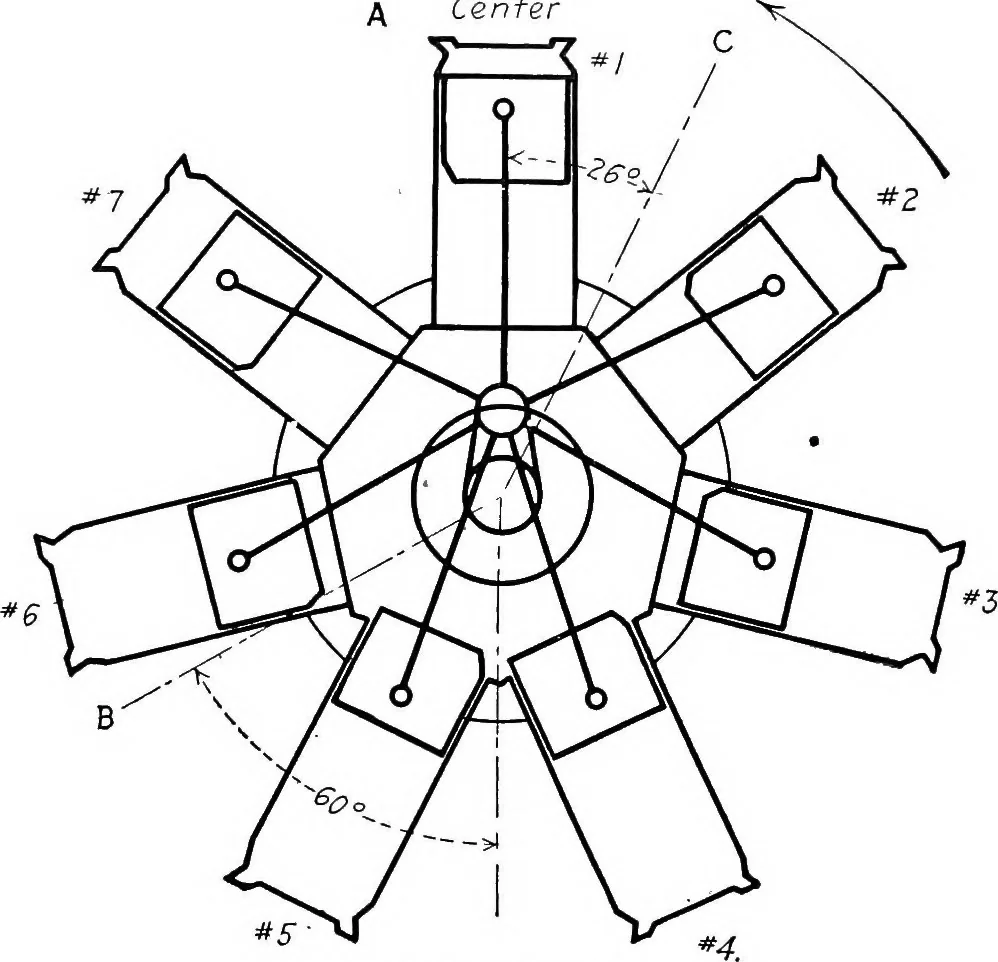

k-case which meshes with 16-tooth pinionon armature. The magneto turns at 2.25 times crank-case speed. Two cams, one for inlet, one for exhaust,are mounted on a carrying member and act on ninerocker arms which are capable of giving a push-and-pull 504 Aviation Engines motion to the valve-actuating… … Bottom DeadCenter Fig. 223.—Diagram Showing Positions of Piston in Le Rhone RotaryCylinder Motor. relation to the other. These give the nine fnlcrumedlevers the proper motion to open the inlet and exhaustvalves at the proper time. The cams are driven at4%o or %0 of the motor speed. The cylinder…
