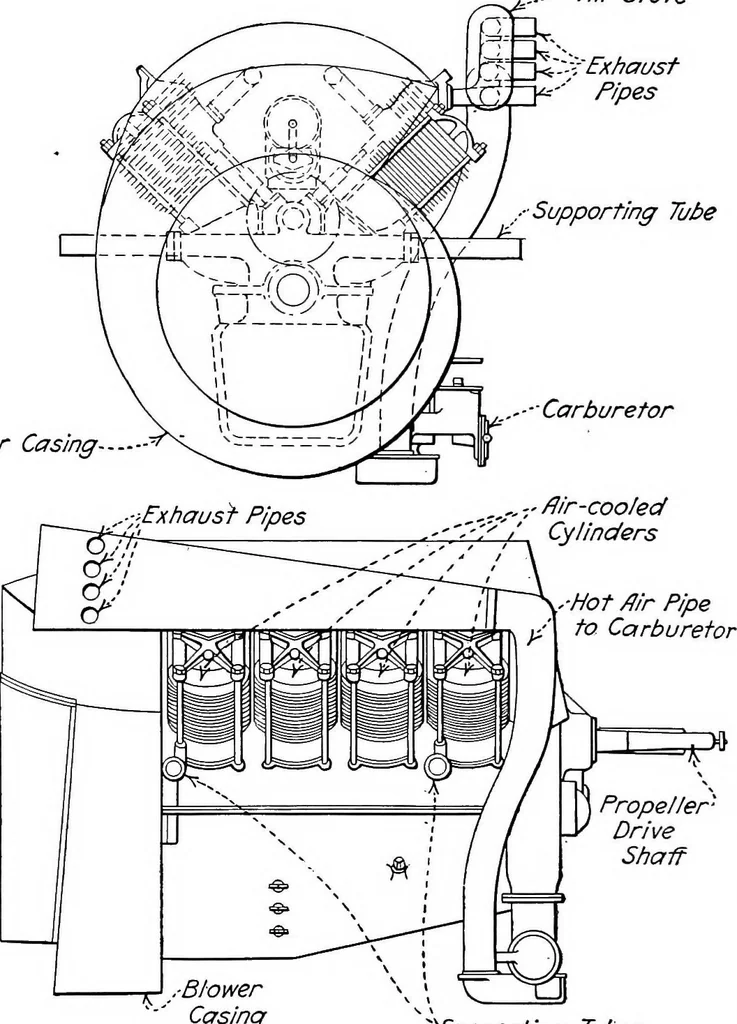

-i-~-sExhaustPipes /■Supporting Tube Blower Casing. … /BlowerCasing ^Supporting Tubes Fig. 225.—Diagrams Showing How Cylinder Cooling is Effected inRenault Vee Engines. models rated at 70 horse-power and a twelve-cylinder, ortwin six, rated at 90 horse-power. The cylinders are ofcast iron and are furnished with numerous cooling ribs Renault Air-Cooled…
