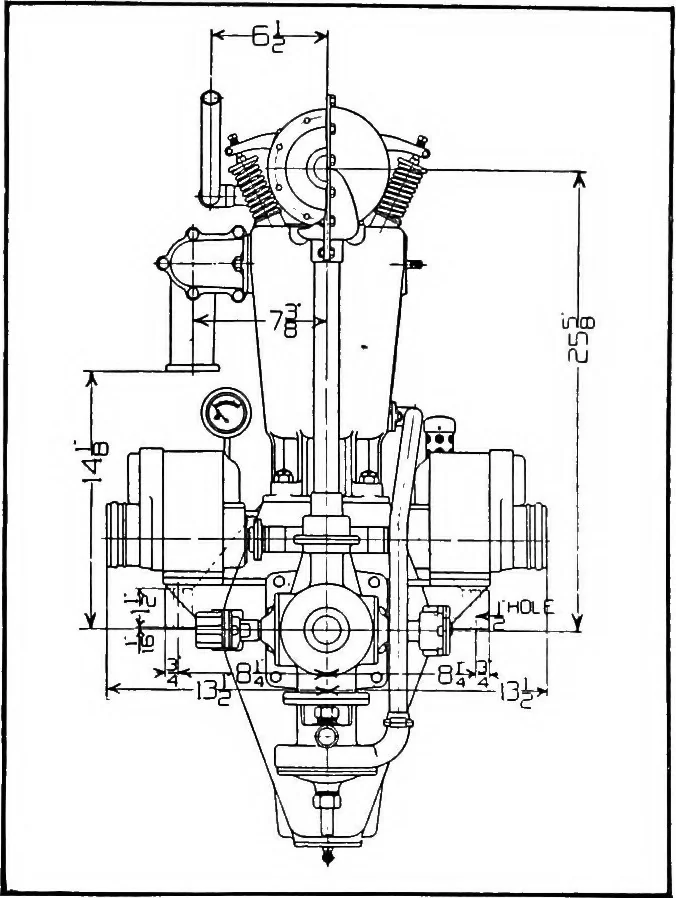

Top, as Viewed fromCarburetor Side. Below, the Exhaust Side. Wisconsin Aviation Engine 531 The bearings of cam-shaft are of bronze. Magneto, twohigh-tension Bosch D. U. 6. The intake manifold forcarburetors are aluminum castings and are so designedthat each carburetor feeds three cylinders, thereby… … Fig. 238.—Dimensioned. End Elevation of Wisconsin Six Motor. with cylinders in pairs and valves in the head. Dimen-sioned drawings of the six-cylinder vertical type aregiven at Figs. 238 and 239. The cylinders are made ofaluminum alloy castings, are bored and machined andthen fitted with hardened…
