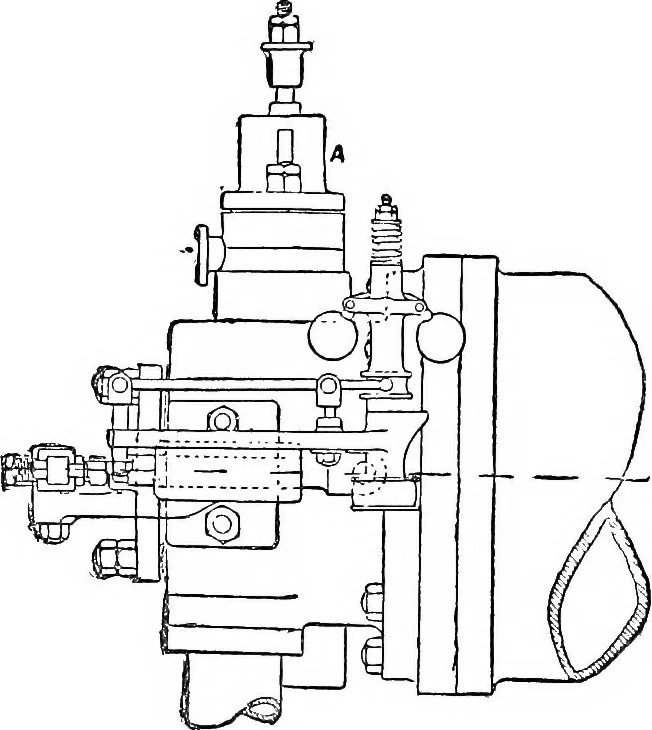

ost may be taken as not exceeding 04d. per I.H.P. hour. 316 THE CAAIPBELL OIL ENGINE. CHAPTER XXV. The Camphell Oil Engine.—The construction of the engineis shown in the engravings. It will be seen that the enginehas only two valves—the inlet valve A (fig. 152) and theexhaust valve B (figs. 153 and… … Fia. 152. when a vacuum is formed in the cylinder. The valve B isworked through a lever and side rod by an eccentric on thecrank shaft. When the speed exceeds the normal, a centri-fugal governor pushes down a steel catch and prevents theexhaust valve closing. When this valve is held open, novacuum…
