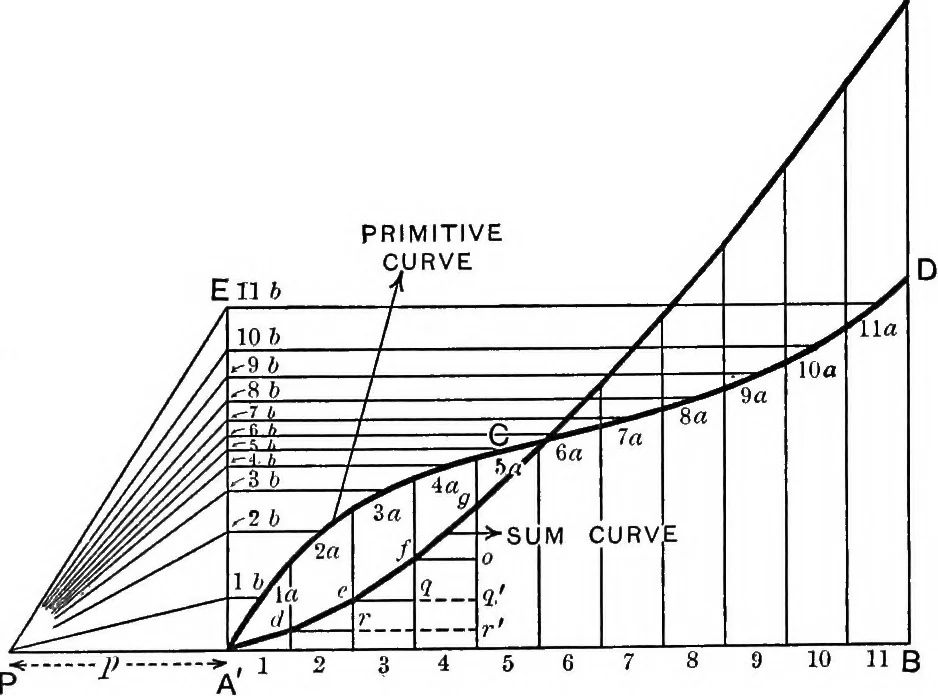

AND ITS APPLICATIONS 3 so-called base elements should be taken so small that theportion of the curve above them may be taken as a straightline. About 1 cm., or 0-4 in., will usually be a suitablesize, and in most cases a smaller element 11 will come at theend. Find the mid-points, 1, 2, 3, etc., of… … FiQ. 2.—Graphical Construction of the Sum Curve. and join such points to a pole P on A B produced and at some convenient distance f from A. Across space 1 then draw A.d parallel to P16, tie across space 2 parallel to P26, and so on, imtil space 11 is reached. Then the curve A(ie ... is the sum…
