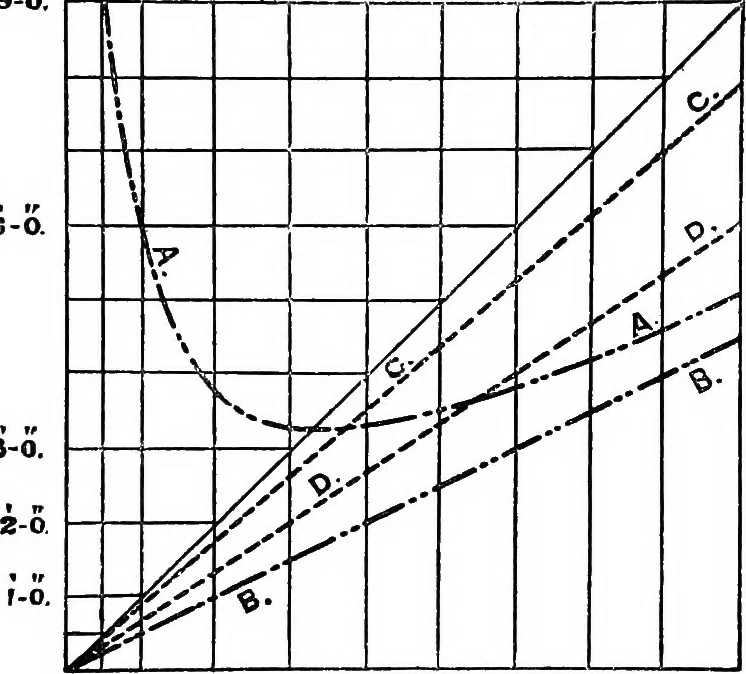

Draught 6 inches .. BM = 10-66 feet „ I foot .. BM= 5-33 „ 2 feet .. BM= 2-66 „ „ 4 .. .. BM= 1-33 „ .. 7 „ .. BM= 076 ,, ,. 9 M .. BM = 059 „ The centre of buoyancy is always at half-draught, so thatits locus or path will be a straight line,^ and if the values obtainedabove are set off from the… … 3-0, Fig. 57. 2. For a floating body with a constant triangular section, thelocus of centres of buoyancy is also a straight line, because it isalways two-thirds the draught above the base.^ Suppose thetriangular section to be 10 feet broad at the top and 9 feet deep,the length of the body being 120…
