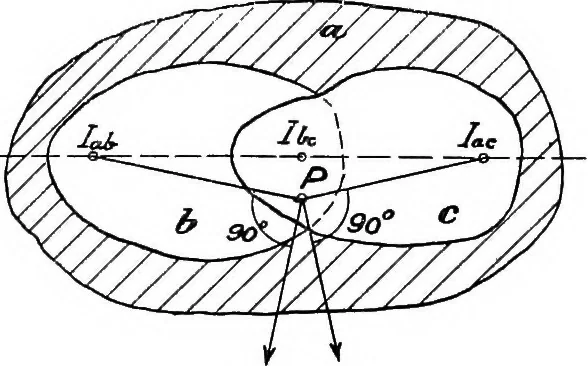

ed fixedcentres. Three Virtual Centres in a Straight Line,—If we have threelinks a, h, c, they will have three virtual centres, viz. lai, lac,and l6c; it then follows that these three virtual centres mustbe in a straight line. To prove this, suppose that a, b, c, Fig. 75, are three links,that lai,… … Fig. 75. moves at right angles to P lab, similarly, regarded as a pointin C, P moves about the point lac, and so moves at rightangles to PIoo. The only condition under which P canpossibly move at the same time at right angles to P lab andPlac is that P should lie upon the line lab, lac- If a…
