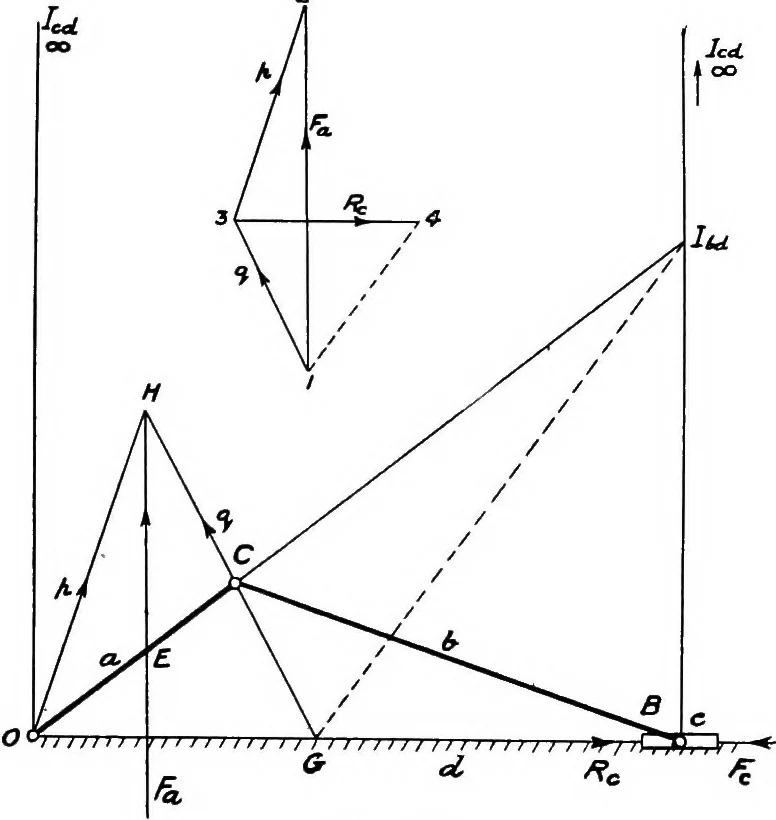

ICS Fe is given by the length 4, 3 to the force scale. The com-ponent r, acting towards the fixed point I«/, can have no efEectupon the movement of the links, and therefore the remainingcomponent of p, viz. 3, 4, must be the force acting upon thelink e, which is statically equivalent to the force… … Fig. 77. treatment often leads to error, as we will demonstrate laterin dealing with the application of these principles to thequick-return mechanism used in shaping machines. Application to Crank and Connecting-rod Mechanism.—Inthis case. Fig. 77, we have four links: the crank a, con-necting-rod…
