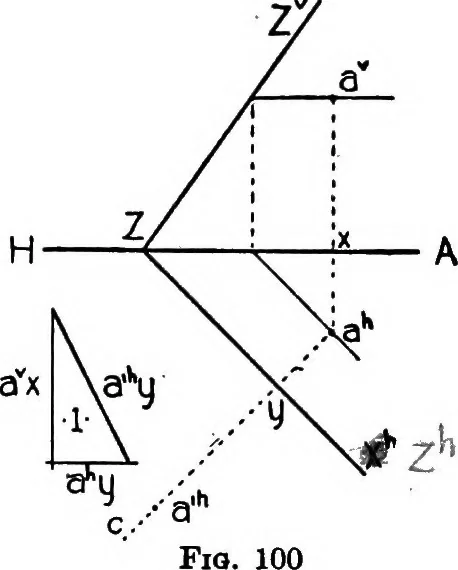

f the path of the point duringrotation, the required point will lie somewhere oh it. In orderto determine the distance of the required point from y, lay outthe right triangle 1 at any convenient location on the drawing.Make it equal to the right triangle aoiy in Fig. 99, i.e. with itsbase equal to… … DESCRIPTIVE GEOMETRY [VI, § 91 (loO After a few examples have been solved, the actual constructionof such a triangle as 1 may be omitted altogether, the requireddistance being determined directly with the dividers. In Fig. 101, the point b, lying onthe plane Z, is rotated about thetrace ZZ, into V.…
