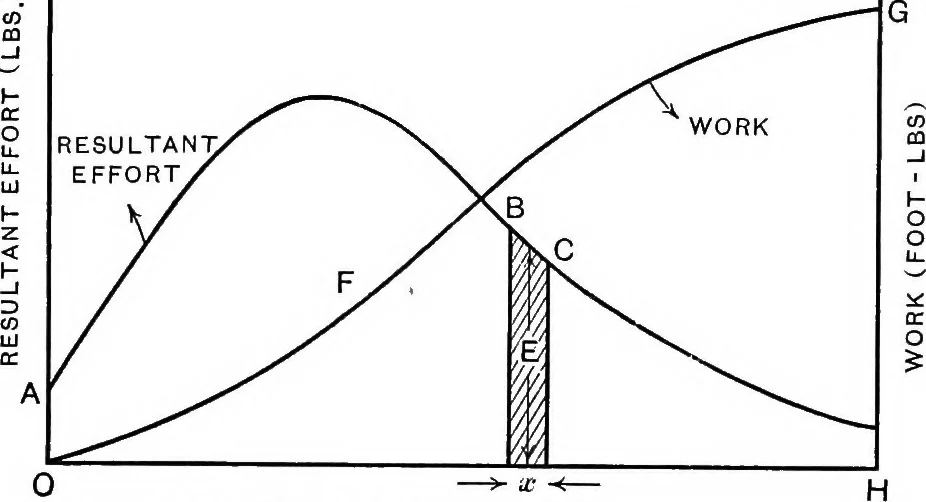

we get a curve ABC, Fig. 4, which isusually called the effort curve. Consider two points B andC which are so close together that the resultant effort orforce E may be regarded as constant over the length. Thenthe work done over this length will be equal to constantforce X distance moved = E X a; =… … SPACE OR DISTANCE (FEET) Fio. 4.—Effort and Work Curves. comparatively long lengths the statement is only approximate.If now we consider the whole base 0 H to be divided up intoshort lengths, the same argument will hold for each strip ofthe curve, so that, adding together these separate strips,…
