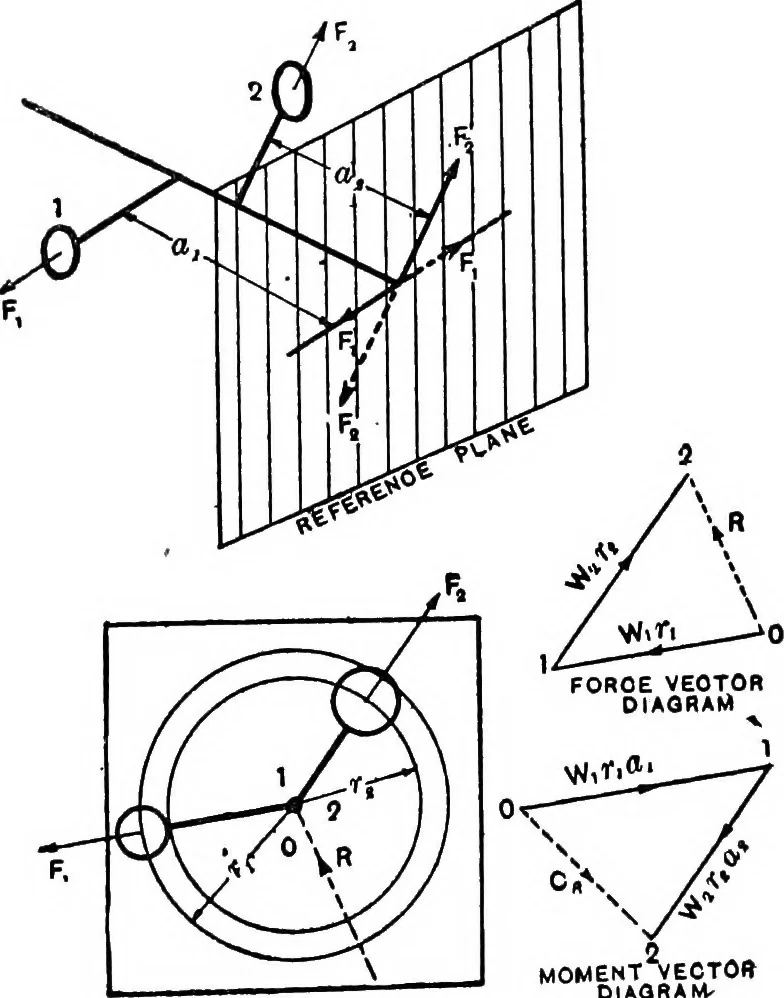

Fig. 89.—Couples in Dif-ferent Planes. BALANCING ROTATING PARTS 163 in Fig. 90 at radii r^, r^ on a rotating shaft, and considerany convenient reference plane at right angles to the shaftpassing through a point on the axis. Now imagine to actthrough this point on this reference plane equal and… … moment*veoto»FiG. 90.—Balancing Weights in Difierent Planes. have no effect upon the whole system of forces. We cannow regard our forces F^ and F^ as equivalent to two forcesF F2 in the reference plane, and two couples of momentsF^ai Fg a^ acting in the planes containing the axis of rotationand the…
