Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 176

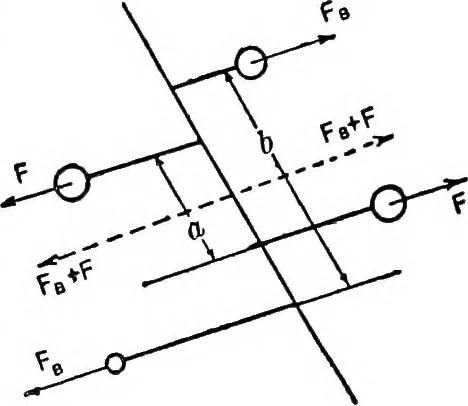

te number of ways, since we may take any value andradius we like for one of thebalance weights, the value andradius of the other and thedistance apart of the weightsbeing determined by the aboveformulse. We now have twoloads on each side of the shaft,and if we find the lines of actionof the… … 166 GRAPHIC DYNAMICS NUMEBICAL ExAMPliE.—It may help to make more clearthe conditions which we have explained up to the presentby symbols if we work a numerical example. Find suitable balance weights for two weights each of 10 Z6.placed at opposite radii of 1 ft. at a distance of 9 in. apart.We can…
Mechanics, Applied · Dynamics · Graphic methods
