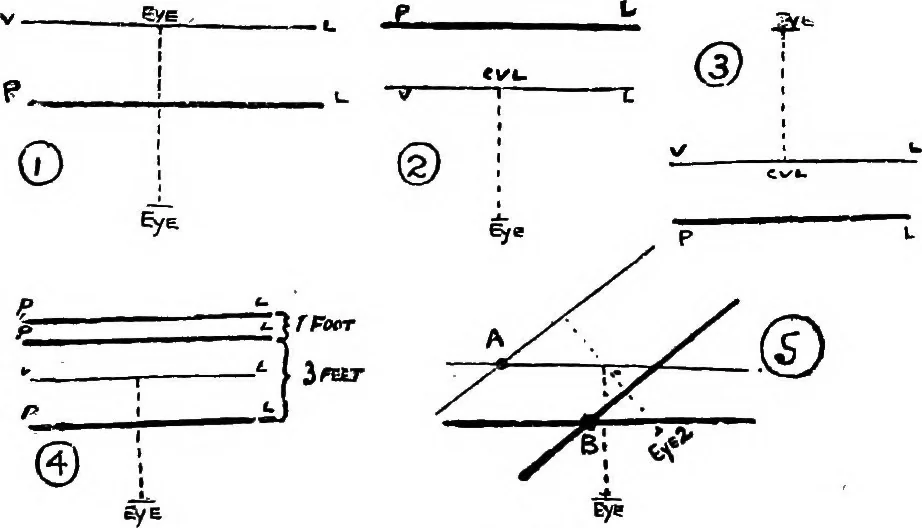

diagrams,such as Fig. 77. It .means 5 feet above the level of theeye, and the eye in these diagrams is the eye laid I 114 Perspective down into the picture, and does not give the levelat all—the C.V. does that. All parallel planes have the same V.L.j but each planewill have its own P.L. See No. 4,… … FiQ. 77.—The scaffolding. This mates no difference to the working, and is often aconvenience. Vanishing lines, being all equally remote, touch eachother where they cross, as A, No. 5; and picture-lines,being all in the picture-plane, touch where they cross,as B, No. 5. So that if A and B be joined,…
