Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 181

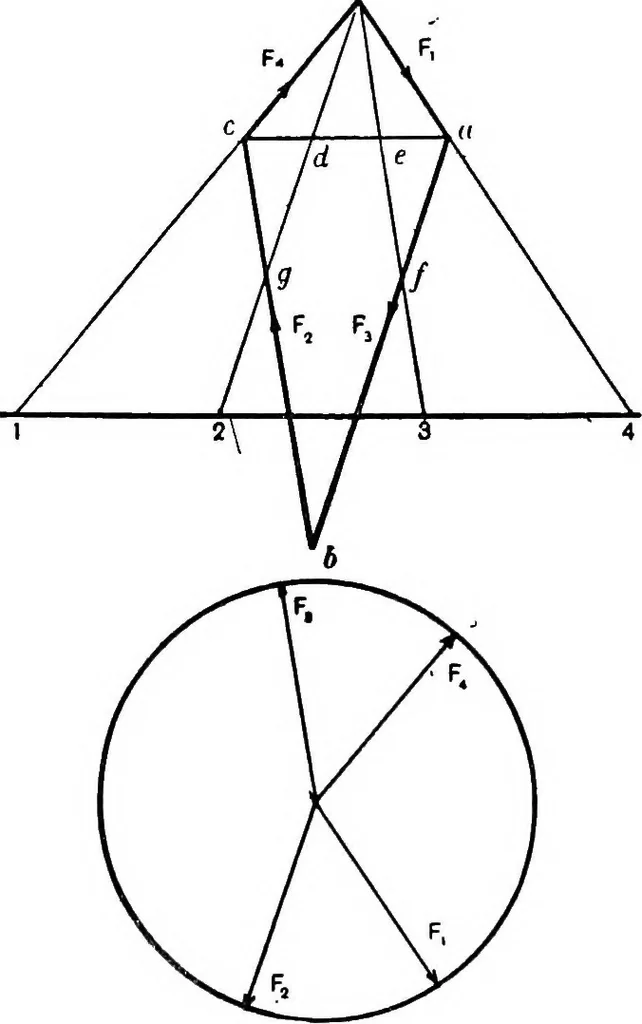

ead tobalance when the planes of revolution are given, or will enablethe planes of revolution to be determined when the crank-angles are known. 170 GRAPHIC DYNAMICS Let 1, 2, 3, 4, Fig. 95, represent four planes of revolution,the centrifugal forces due to the rotation of the correspondingweights… … Fig. 95.—Balancing : Schuberts Construction. X 2 in d and X 3 in e; next draw a b parallel to X 2, andc 6 parallel to X 3, the intersection giving the point b. Then X a 6 c wiU represent the force vector diagram fora condition of balance so that a b gives F3, b c gives Fg, andc X gives F4; and if…
Mechanics, Applied · Dynamics · Graphic methods
