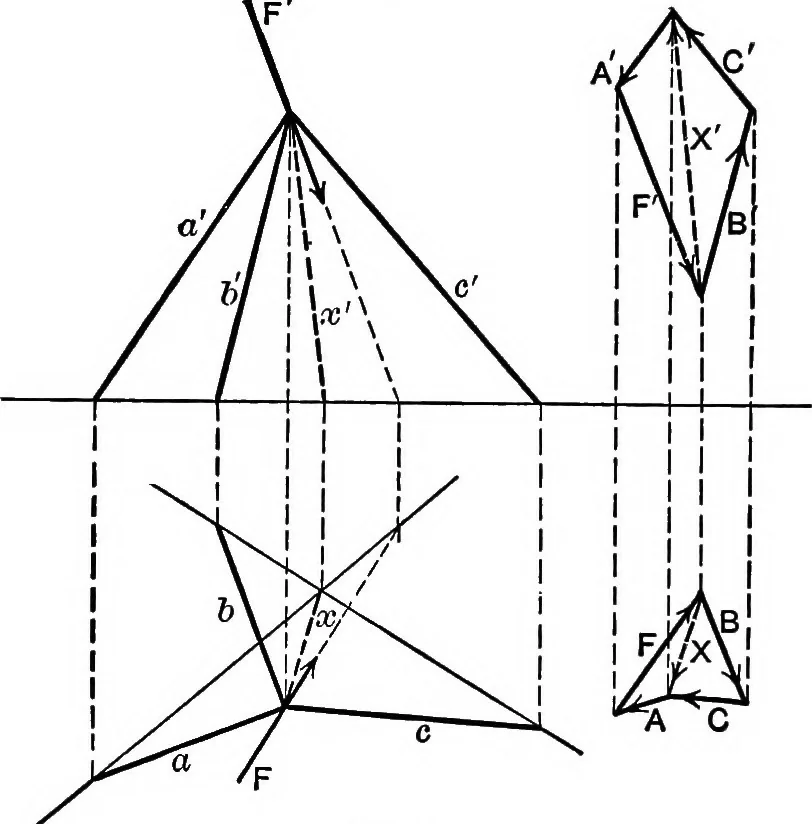

ral solution of the above problem whichapplies equally well whether the load is vertical or notbut based upon the method used above is furnished bythe appKcation of descriptive geometry. 86 APPLIED STATICS In Fig. 64, a, V, and c represent the elevation ofthe tripod legs and a, b, and c their plan.… … Fig. 64 To the right are shown first the projections of the tri-angle of forces for the equilibrium of the forces in theplane determined by the leg a and the appKed force P;then the resolution of the force X into the forces B andC, also in projection. The quadrilaterals formed by the forces A, B,…
