Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 42

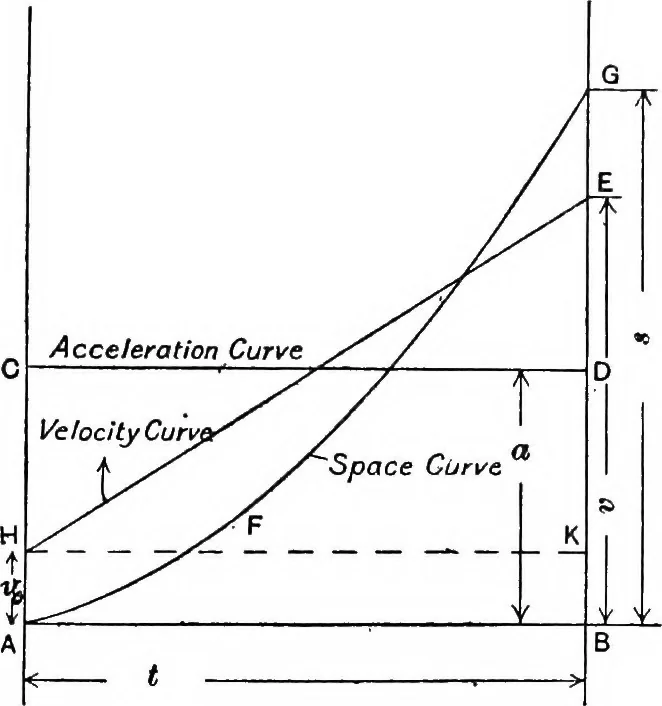

rk in a similar SPACE, VELOCITY, AND ACCELERATION 31 manner from the velocity curve; at 10 secs.,<for instance, wehave acceleration = slope of velocity curve ^hl ^hl go that by plotting up j k equal to -^ to an enlarged scale, we get a point k on the acceleration curve, and, by joining upsuch… … Fig. 20. curves. One important feature of the study of engineeringtheory from the graphical standpoint, which many authoritieshave failed to appreciate, is the elegant manner in whichformulsB can be derived to deal with the simplest cases. Itdoes not at all foUow that, in dealing with the subject…
Mechanics, Applied · Dynamics · Graphic methods
