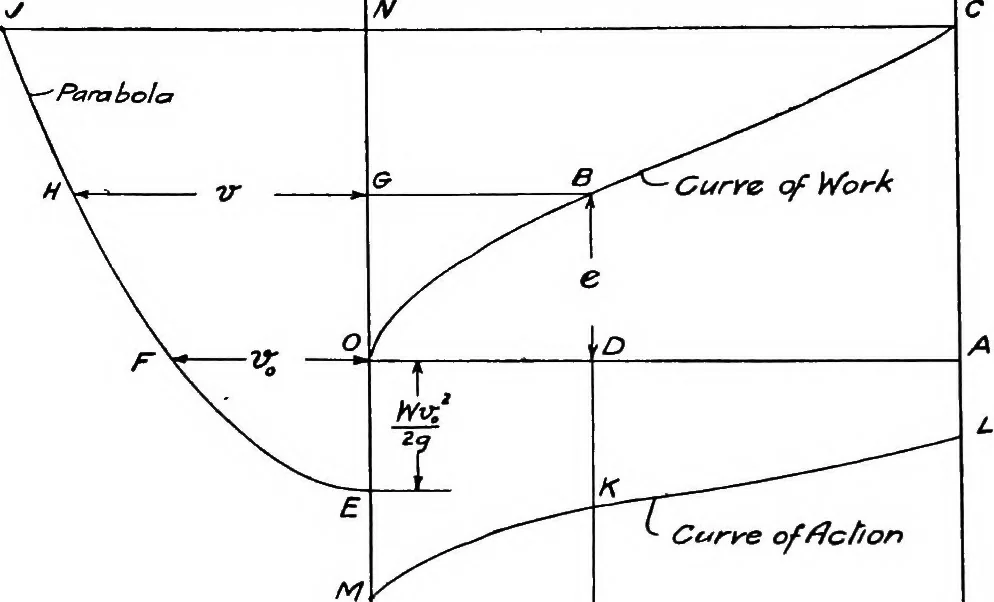

alculated at anypoint, and from these results we could plot a fresh diagramof velocities upon a distance base, thus obtaining the curveof action. 38 GRAPHIC DYNAMICS Auxiliary Parabola Construction for Curve of Action from Curve of Work.—Let OBC, Fig. 21, be a curve of work, and let the ordinate B… … Curye of Action O, D,Distanc e Fig. 21.—Auxiliary Parabola Construction. venient scale. Then with vertex E and axis 0 E draw aparabola E P J to pass through the point F and extendingto the horizontal line C J passing through the highest pointof the curve of work. Then from the property of the…
