Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 51

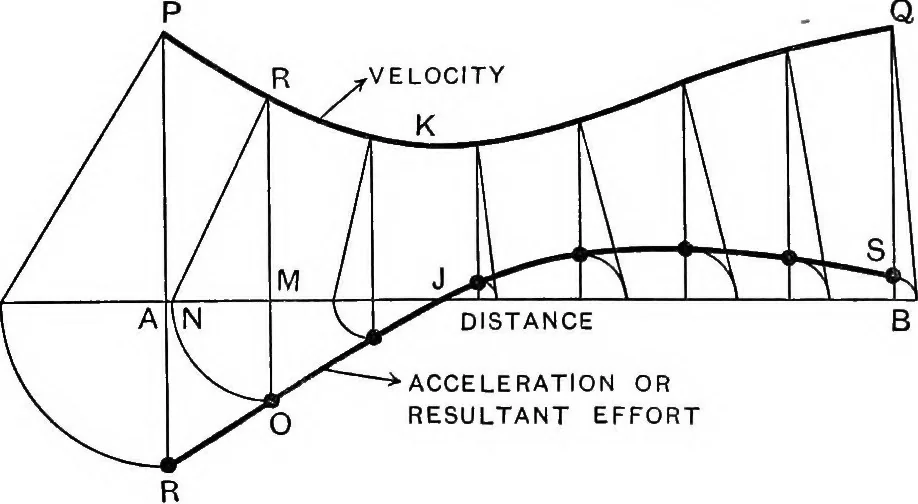

■ACCELERATION ORRESULTANT EFFORT Fig. 22.—Curve of Resultant Effort from Curve of Action. CURVES OF ACTION 41 We then note that tane = QS BvSs also tan 0 ■■ MNMR MN :. MN^ V . Sv i.e. (v + ^y=v+2c 8s (=^) But wo have shown that the formula for motion under con-stant acceleration is i;^ = ^0^ + 2 a…
Mechanics, Applied · Dynamics · Graphic methods
