Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 91

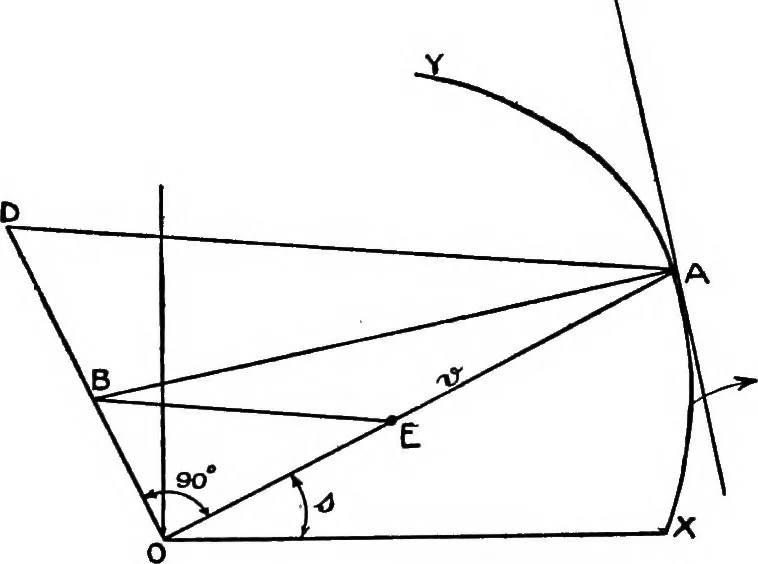

ope curve represents the rate of increase of its originalcurve; the polar effort curve is, therefore, the polar dopecurve of the polar work curve, and, conversely, the polarwork curve is the polar sum curve of the polar effort curve.These curves are seldom used in practice, and so are notfuUy… … Polar Curveof fiction. Fio. 42. action; that is to say, the angle X 0 A represents the dis-tance s moved through from some reference point, and 0 Arepresents the velocity at this distance. It is well known that the relation between the acceleration Iv and the velocity can be expressed by a = 8s .…
Mechanics, Applied · Dynamics · Graphic methods
