Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)

Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 207

An illustration from Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry, 1921, leaf 207

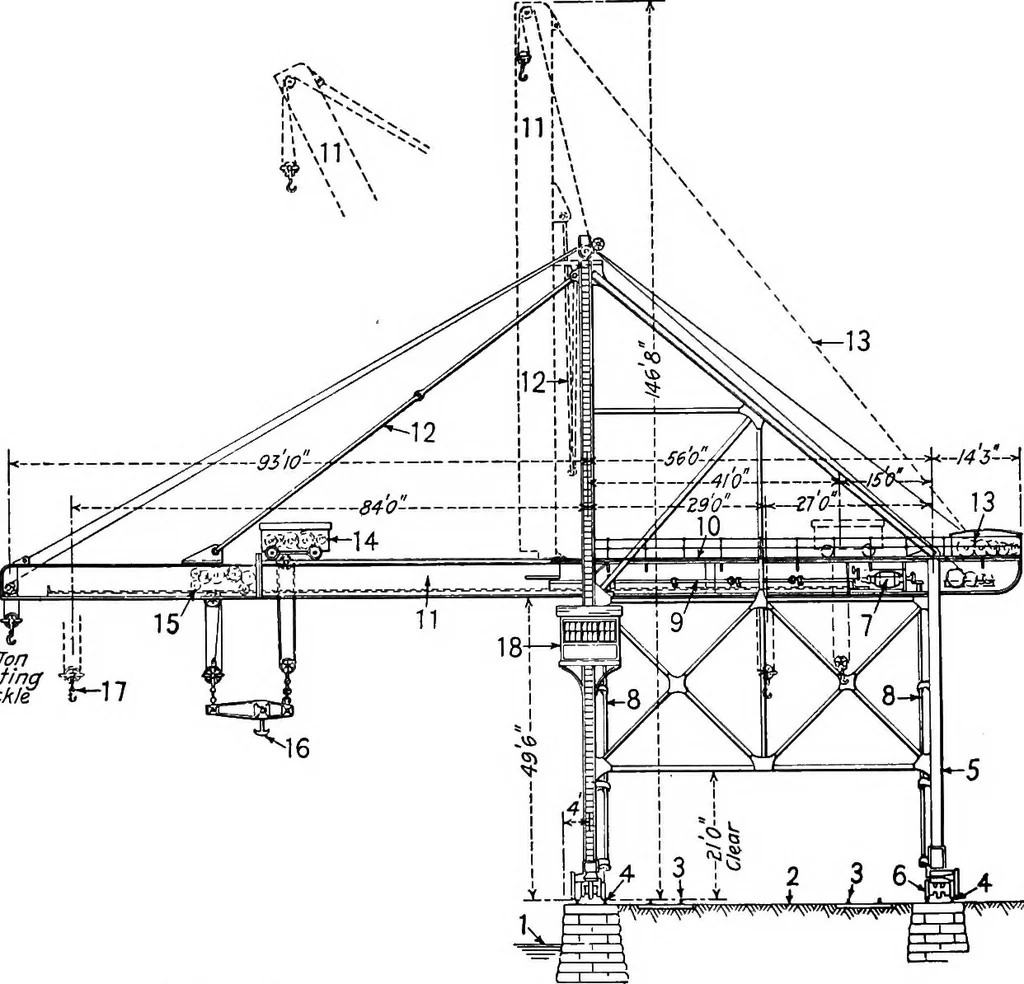

1 Water Level 2 Wharf 3 Railroad Tracks 4 Crane Runway 5 Portal Gantry 6 Gantry Trucks … lOTon ^Masting ■»■ ,_Tackle t*-17 a^it^iiJin^ List of Parts. 7 Truck Drive Motor 8 Truck Drive Shaft 9 Squaring Shaft 10 Bridge 11 Folding Jib 12 Jib Truss-Rod 13 Jib Hoist 14 SO-Ton Trolley 15 25-Ton Trolley 16 Main Hoist Hook 17 Maximum Reach 18 Operators Cab Folding-Jib Traveling Gantry Wharf…
