Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)
Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 209

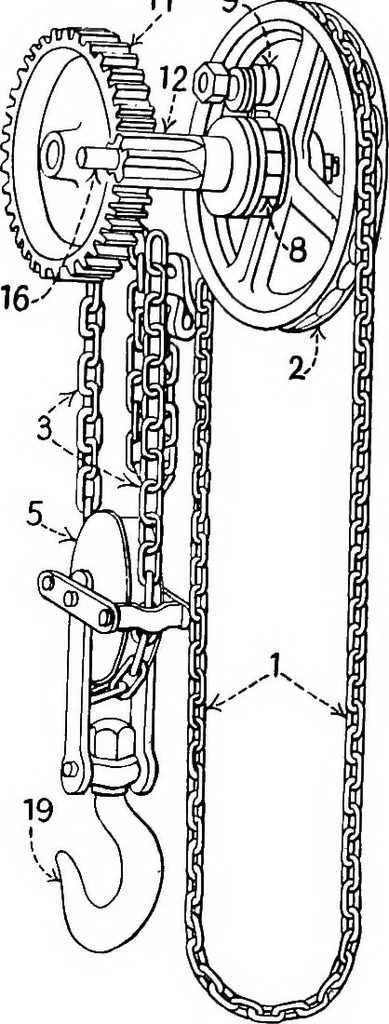

11 9 … Worm Gear. Planetary Gear. Single Spur Gear. Chain Hoists—List of Parts. 1 Hand Chain 7 Worm 14 Pinion Case 2 Hand Chain Wheel 8 Ratchet Wheel 15 Intermediate Gear 3 Load Chain 9 Ratchet Pawl 16 Central Shaft 4 Upper Load Sheave 10 Internal Gear 17 Shock Absorber 4a Differential Sheave 11 Load Gear…
Hoisting machinery · Conveying machinery
