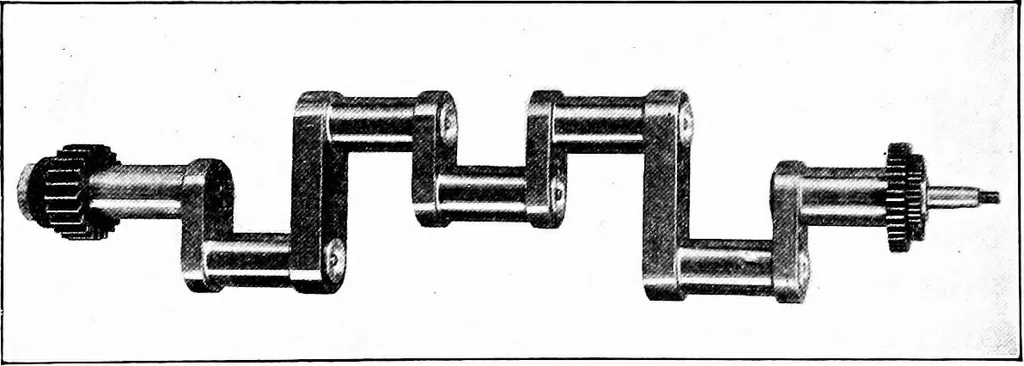

Fig. 136.—Showing Form of Crank-Shaft for Twin-Cylinder Opposed Power Plant. some cases where the crank-shafts revolve on ball bear-ings as in some automobile racing engines. Crank-shaft form will vary with a number of cylindersand it is possible to use a number of different arrange-ments of… … Fig. 137.—Crank-Shaft of Thomas-Morse Eight-Cylinder Vee Engine. of cylinders. The simplest form of crank-shaft is thatused on simple radial cylinder motors as it would consistof but one crank-pin, two webs, and the crank-shaft. Asthe number of cylinders increase in Vee motors as,a gen-eral rule…
