Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)
Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 463

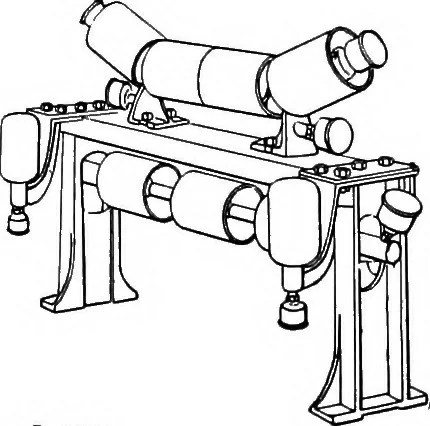

Figs. Ill and 112 Guide rolls are sometimes required to prevent the beltfrom running out of line as it passes over the idlers.These guide rolls are usually used on the carrying sideof the belt (Fig. Ill), but are occasionally fitted to thereturn run (Fig. 112) as well. PULLEYS, PUSH BARS AND…
Hoisting machinery · Conveying machinery
