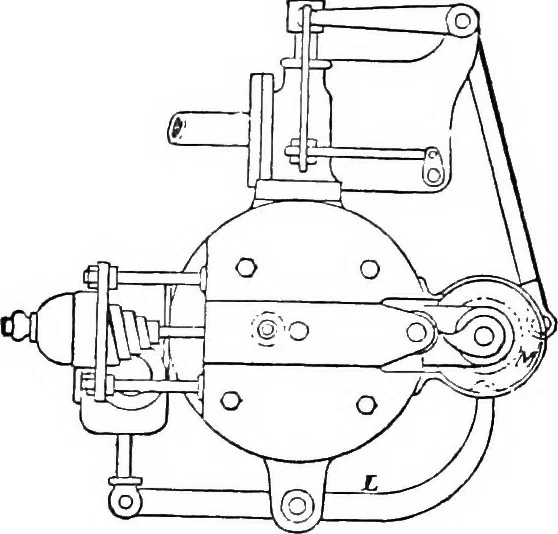

Fn- 132.—Sectional plan of Spiel engine, the spirit valve P, and compressing the spiral spring K. Thedown stroke is prolonged until the spirit is discharged by theplunger E against a cone-shaped disc in the chamber X. The … Fig. 133.~End view of Spiel engine. function of this cone is to spray the spirit and to cause it tomix with air. During the downward movement of theplunger E the admission valve to the cylinder is opened, and 288 SIMPLEX CAEBTJEATOE. the piston, on its outward stroke draws the spirit vapourand air…
