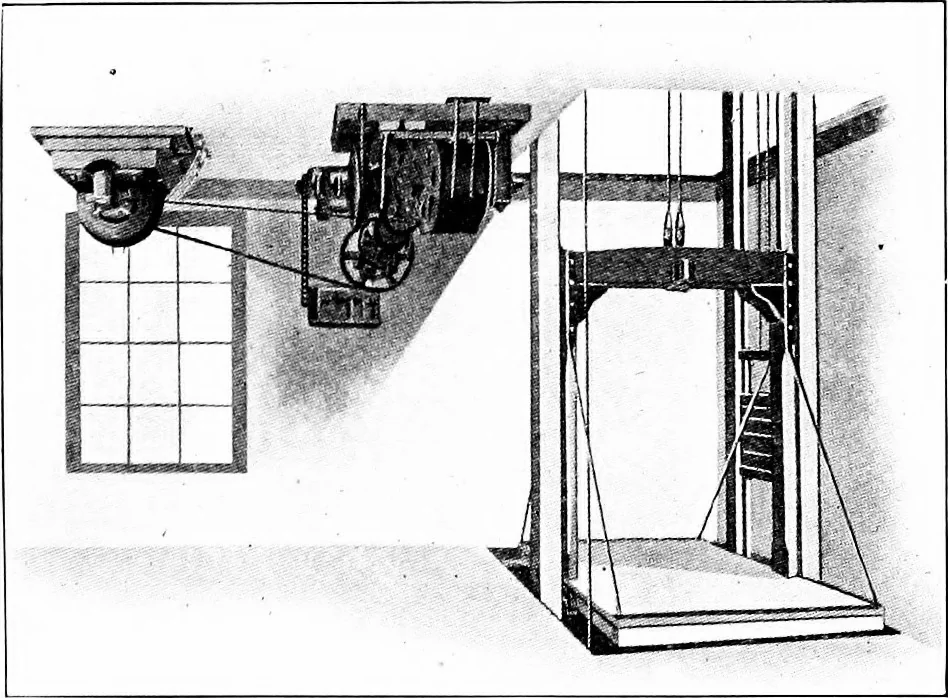

single belt is used it is necessary to install areversible motor so as to enable the car to travel up ordown. If power is taken from a line shaft which cannotbe reversed the up and down travel of the car may beaccomplished by the use of a double belt elevator. Herethe belts are arranged so that an… … Single Bell Electric Elevator rope in the shaft, which operates the controller. The motordrives the pulley which is l<cyed to the worm shaft. yVworm and wheel afford additional means of speed reduc-tion to the speed reduction obtained by the difference inthe pulley diameters on the motor and on…
