Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)
Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 564

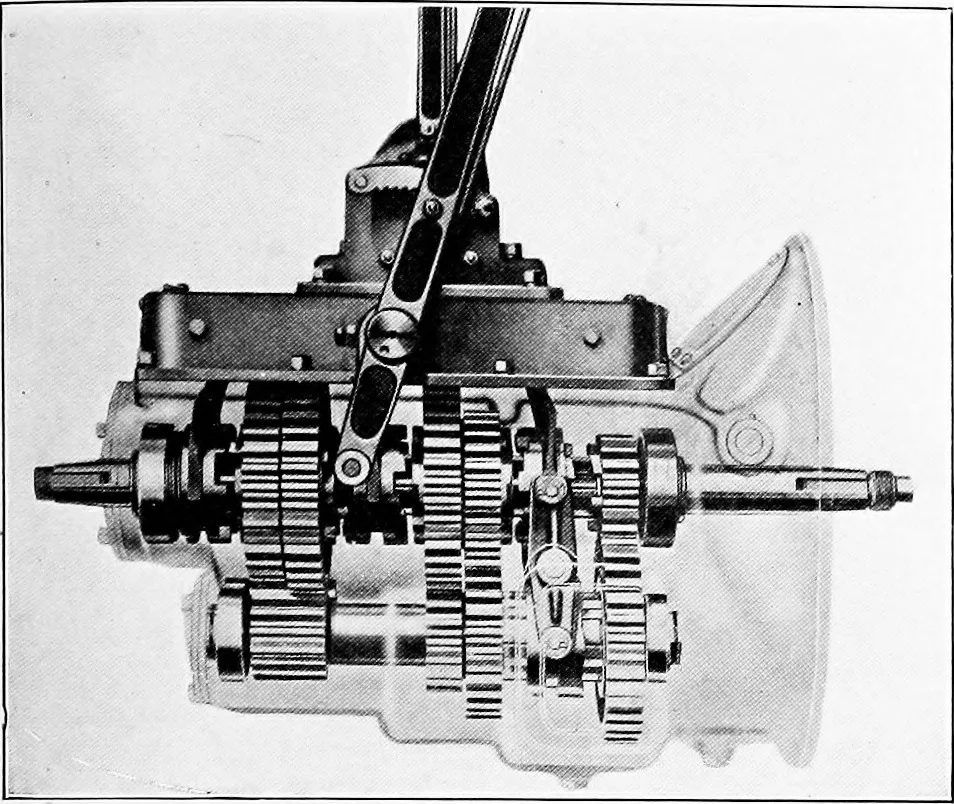

g directly behind the engine. The amidship type transmission with sliding gears isdesigned as a complete unit assembly and is usually placedunder the floor boards in front of the drivers seat. The i;&:& GENERAL SPECIFICATIONS 557 main driving gear or clutch gear shaft is connected to… … Fig. 17—Unit Power Plant, Sliding Clutch Typ.e in a vertical or horizontal plane. Gear wheels, wnosediameters vary according to the ratios and speeds forwhich the transmission is designed, are mounted on theseshafts, those on the lay shaft being keyed or otherwisefastened in position, and those on…
Hoisting machinery · Conveying machinery
