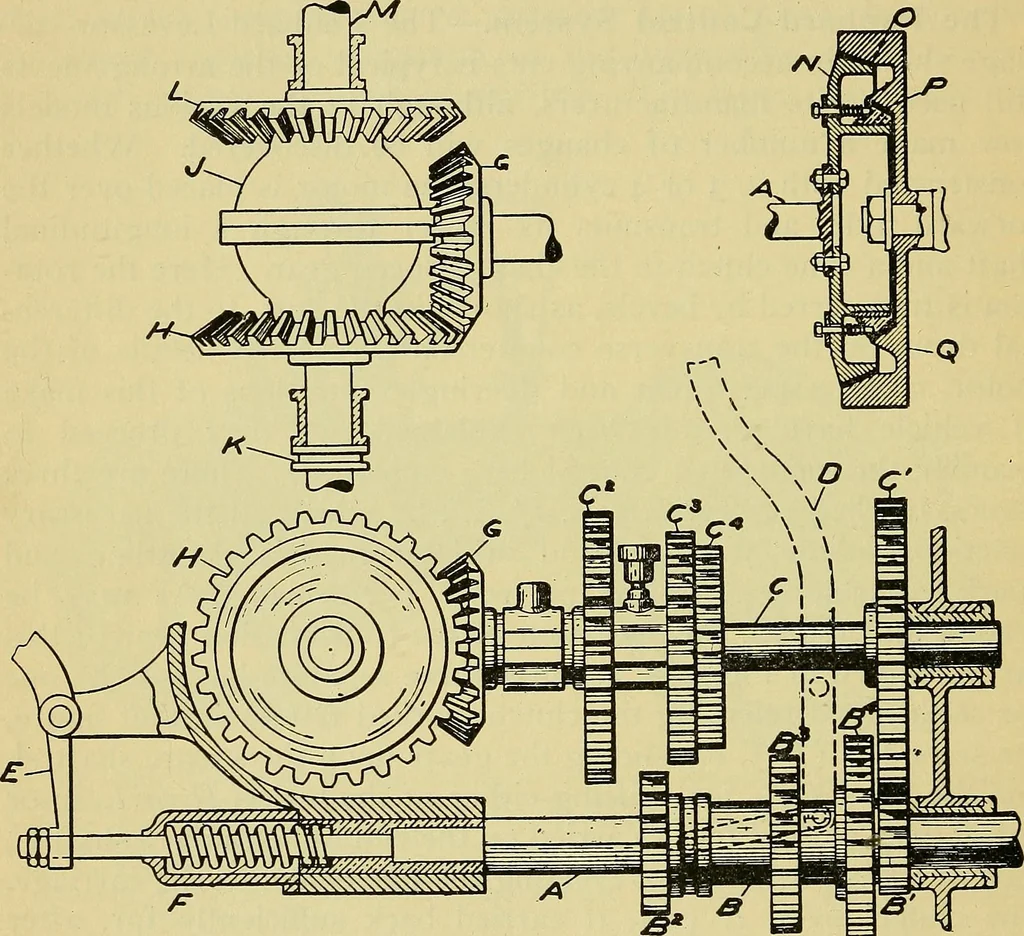

spur gears of varying diameter.On the shaft, C, are keyed four gears, whose diameters vary in-versely with those on A. At the right-hand extremity of the 354 SELF-PROPELLED VEHICLES. shaft, A, is carried the male cone of the main clutch, which, whenheld in gear by a pressure of the spring, F,… … Fig. 266.—Details of the Panhard-Levassor Change Speed Gear. A is asquare section of the main driving shaft; B is a sleeve caused to slideon A by means of lever, D, which carries four spur pinions, B1, B-, B3, B4,of such diameter as to mesh with pinions, C\ C-, C3, C4, keyed on thecountershaft, C;…
