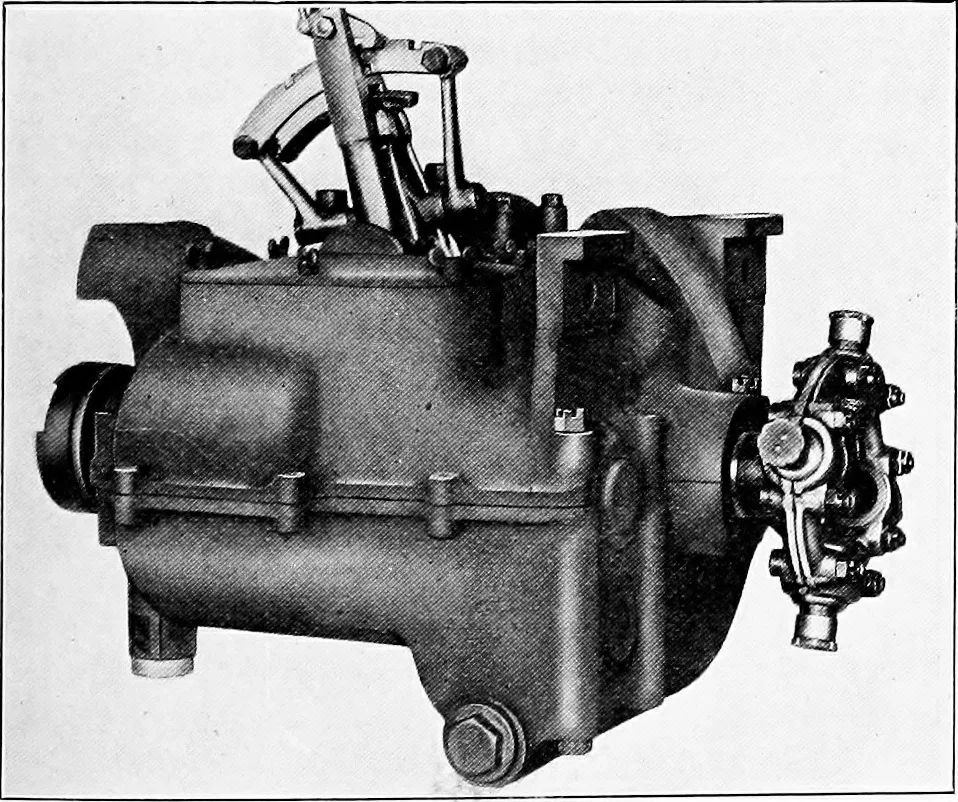

Fig. 17—Unit Power Plant, Sliding Clutch Typ.e in a vertical or horizontal plane. Gear wheels, wnosediameters vary according to the ratios and speeds forwhich the transmission is designed, are mounted on theseshafts, those on the lay shaft being keyed or otherwisefastened in position, and those on… … Fig. 18—Amidship Type Transmission rotatively mounted in the case of the sliding clutch type,with sliding jaw clutches on the splined sections of theshafts. Transmission Assembly The general assembly of these four shafts with changespeed gears is shown in the drawing which illustrates thelayout of…
