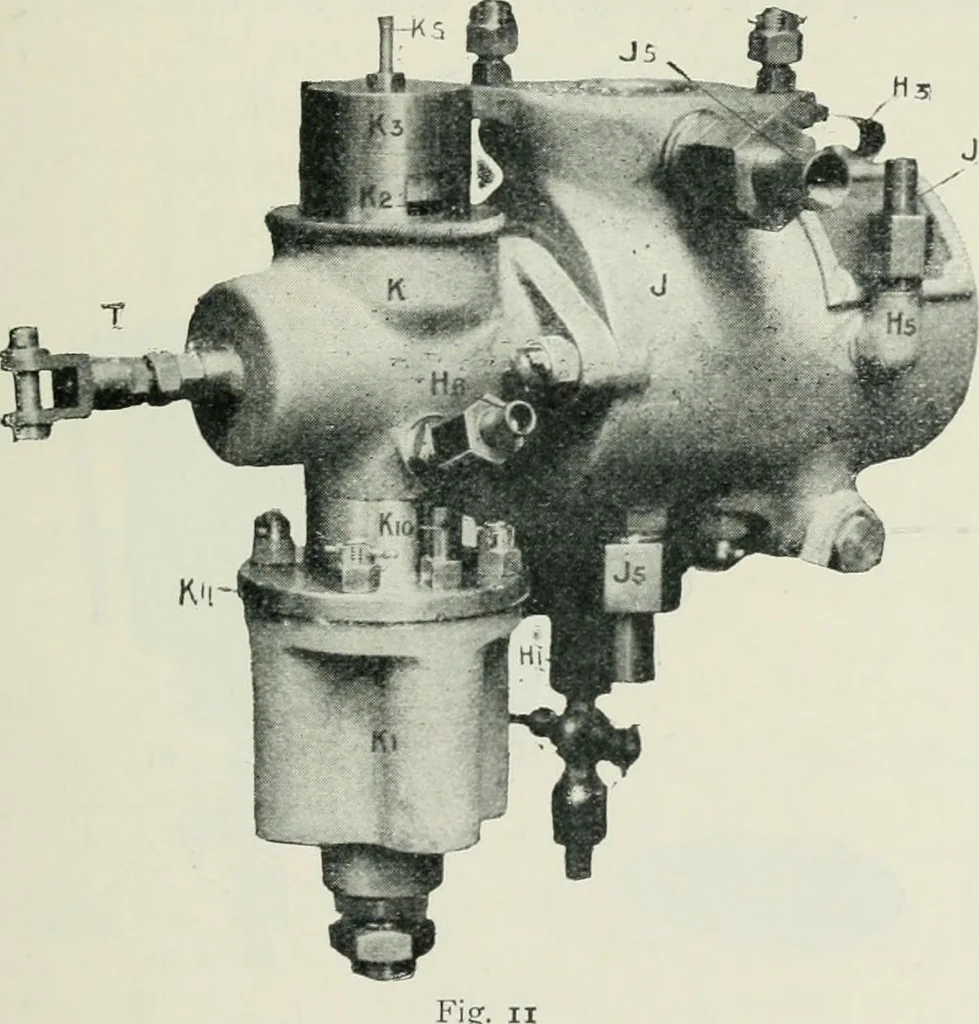

o projects through the side of the cone,close to the sprayer, and passes to the outside of the casting THE PETROL ENGINE 117 J, where it terminates in the fitting H 5. The air entering atJ I (fig. 12) sweeps through the above cone, drawing in petrolthrough the jet H 2 (fig. 12), with a similar… … Rear view of the Crossley Automatic Carburetter, showing the water-jacketedmixing chamber, auxiliary air-valve, throttle valve, and mercury chamber plate K 2 of the mercury chamber k i (fig. 11), which in turnfits closely to the top of a sleeve (not shown) forming apartition inside the chamber K i.…
