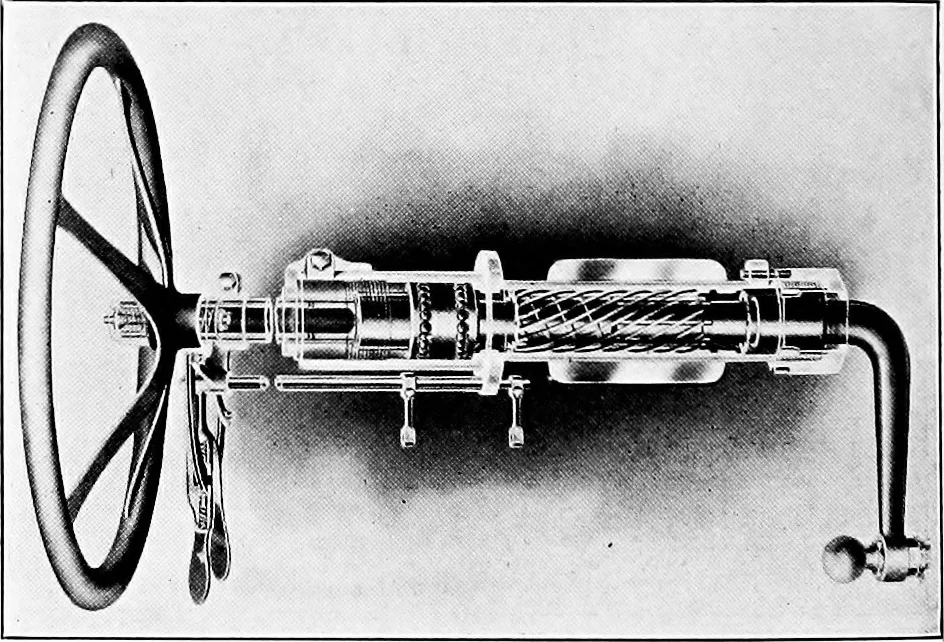

he hand-wheel. (£) The double thread type steering gear is one inwhich the reduction or ratio and the non-reversible fea-ture are secured by a dual set of threads. An outer nut,loosely splined to the pitman arm, has a set of spiralgrooves or threads on its outer face. These threads meshwith… … Fig. 26—Double Thread Type Turning ihc handwheel causes the nut to slide endwiseand at the same time to rotate in the opposite directionfrom the handwheel, but at a much slower rate of speed.The pitman arm being splined to the nut, rotates with itand accomplishes the required steering effort.…
