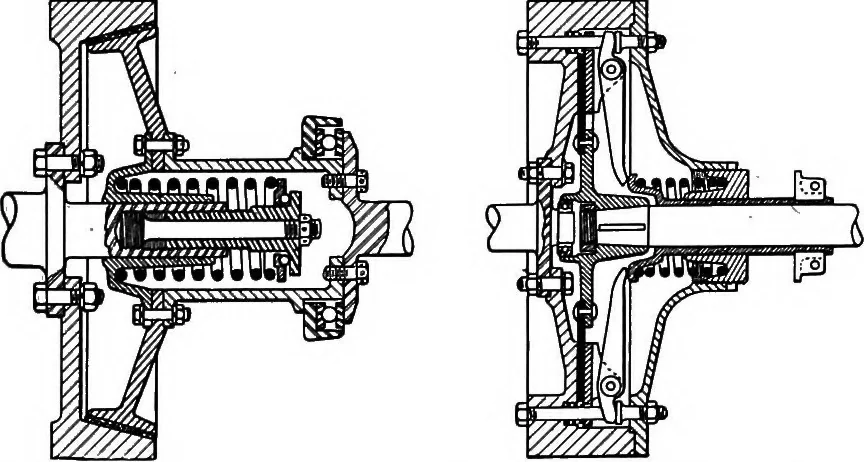

ition metal. Such clutches also may berun in a bath of oil. In certain types of dry plate clutch, only one fairlylarge diameter revolving disc is used; it is mounted onthe driving shaft to which its hub is keyed or splined.In this type the single disc is made of plain steel withleather, asbestos… … Fig. 27—Cone Clutch Fig. 28—Dry Plate ClutchToggle Operated In the lever operated type a toggle is furnished whichhas a pivot point on a plate attached to the fly-wheeland revolving with it. The longer end of the togg.e en-gages with a suitably shaped sliding member on the shaft,which is forced…
