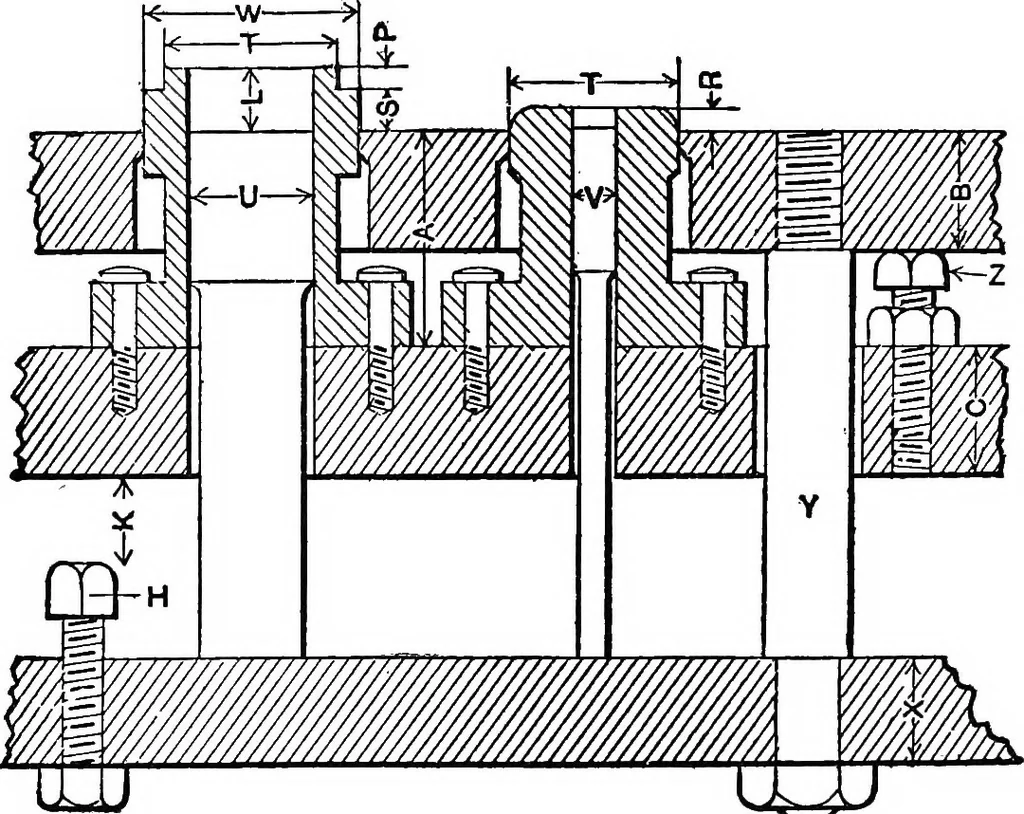

Fig. 106. 236 PATTERNMAKING. standard reamer to the required size, U, then mounted onan arbor, turned to size at T and S, the bottom end squaredoff true and flat, and the top end cut down within 1-32 in.of finished length. Now put a good, stiff face-plate onlathe spindle, see that the face is flat… … Fig. 107. true, drill a J-in. hole in centre of plate and bore it out toabout |-in.; the boring is to bring the hole central. In thishole fix a short piece of brass or soft steel, shoulderedagainst plate, and large enough to finish to size U. This stud may be secured by screw and washer fromback…
Patternmaking
