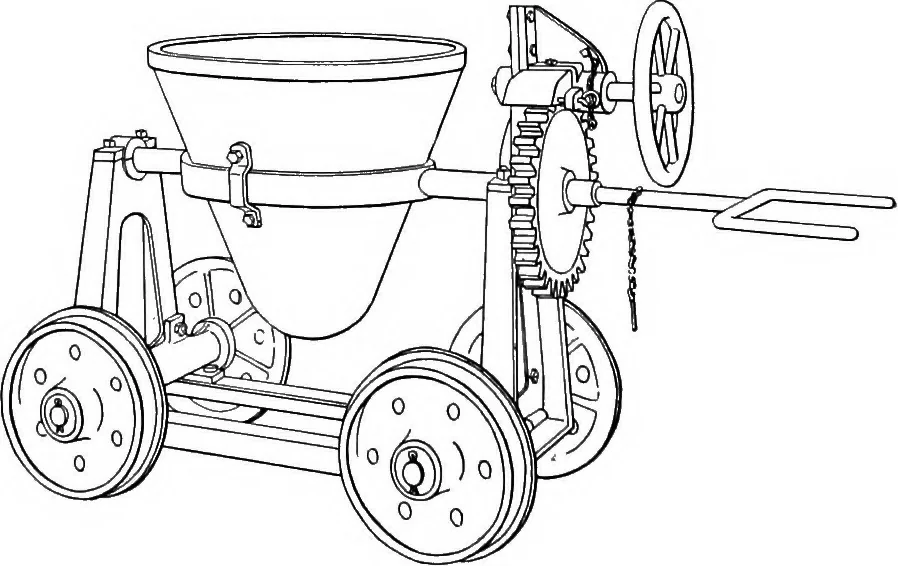

Fig. 70—Geared Ladle Car Geared ladle cars are made in the same sizes as thosewithout gearing and also in capacities up to 8,000 lb. with-out a bail, and up to 12,000 lb. or even larger with a bailattached. The larger sizes are used only on tracks of atleast 30 in. gage. When bails are provided,… … Fig. 71—Cupola Slag Car are so constructed that the ladle itself may easily be liftedoff from the bearings and used as a regular crane ladle. The gearing for controlling the tipping may be of eitherthe spur or worm geared type. Spur gearing is quickeracting but worm gearing is safer in that the…
