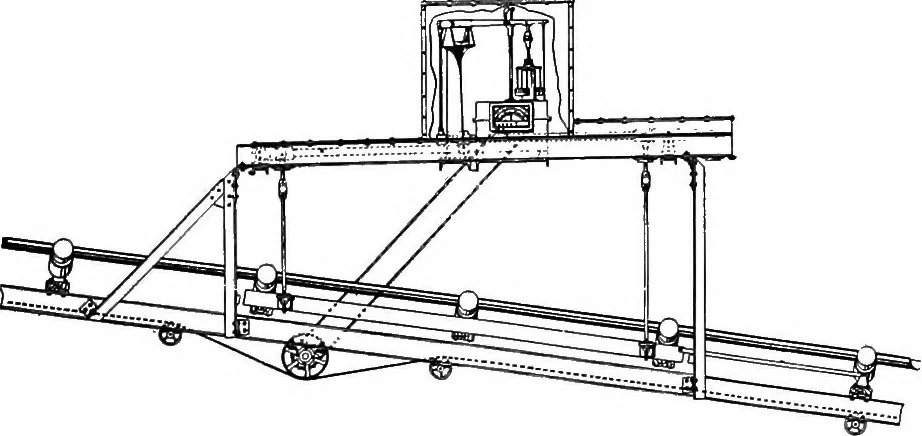

ch of a typicalweightometer installation on an inclined belt conveyor.A section of the conveyor belt is supported on a floatingplatform. This platform is hung on compound leversand balanced by an iron float in a cylinder of mercury.The movement of the float is a direct measure of theweight on the… … Typical Weightometer Installation with Inclined BeltConveyor. The method of recording the weight can be seen inthe illustration of the integrator. Rollers are mountedaround the periphery of the disc (1), and the belt (2),which is driven by the conveyor, rubs agamst thesedisc rollers at the right…
