Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 130

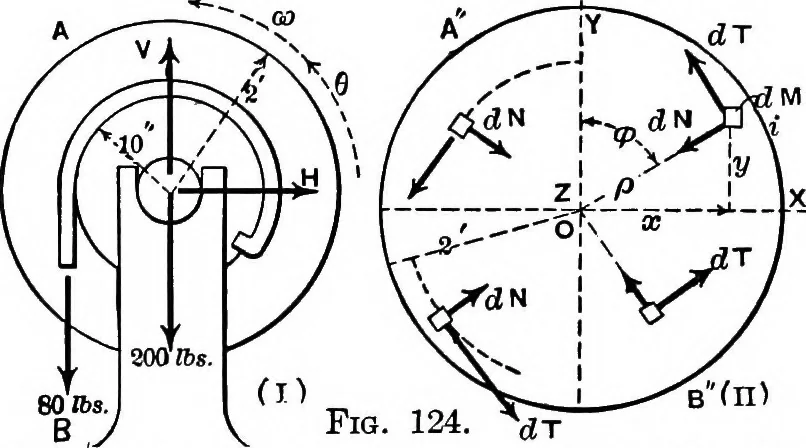

adians per second; ,•. from eq. (1) (o— wo6i=—1—= — 9.424-=-30= —0.3141 radians per sec. per sec. The angular space, from eq. (2) is a=wo< + i^i«2 = 30X9.42-J(0.314)900 = 141.3radians; that is, the stone has made 22.4 revolutions incoming to rest and a point 2 ft. from the axis has described… … problem. Fig. 124 shows a rigid homogeneous right cylin-der A of weight G = 200 lbs. and radius r=2 ft., mounted ona horizontal axle and concentric with the same. The centerof gravity of the cylinder is in the axis of rotation (Z). Theaxle carries a light and concentric drum, of 10 in. radius,…
Mechanics, Applied · Strength of materials
