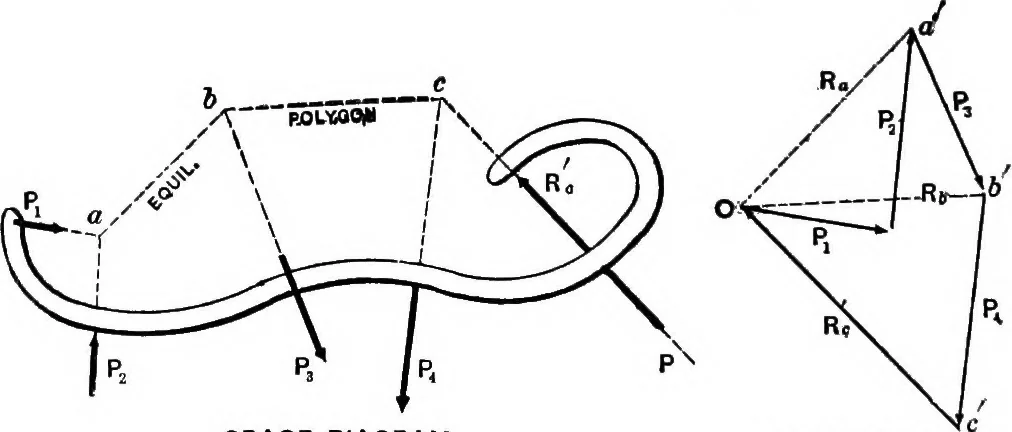

n ofthat end of the beam, to intersect F... c. This is shown inFig. 350 where the whole beam is free, in equilibrium, underthe forces shown, and in precisely the same state of stress,part for part, as in Fig. 348. Also, by combining in oneforce diagram, in Fig. 351, all the force triangles of Fig.… … SPACE DIAGRAMFio. 350. FORCE DIAGRAMFia. 351. Here we note, first, that in the figure called a force-dia-gram, P1P2P3P4 and R/ form a closed polygon and that GPvArHICAL STATICS. 40i their arrows follow a continuous order, point to butt,around the perimeter ; which proves that one condition…
