Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 413

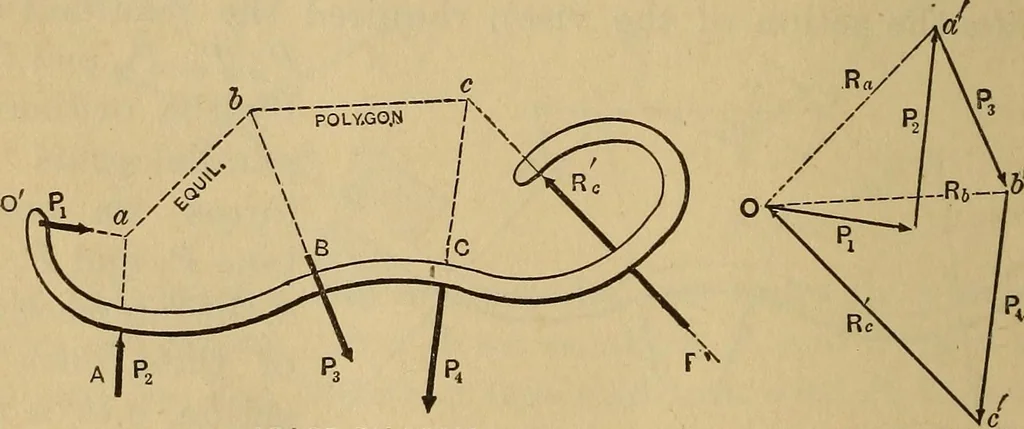

rolongation ofthat end of the beam, to intersect P... c. This is shown inFig. 350 where the whole beam is free, in equilibrium, underthe forces shown, and in precisely the same state of stress,part for part, as in Fig. 348. Also, by combining in oneforce diagram, in Fig. 351, all the force… … SPACE DIAGRAMFIG. 350. FORCE DIAGRAMFig. 351. Here we note, first, that in the figure called a force-dia-gram, PY P2 P3 P4 and Rc form a closed polygon and that GRAPHICAL STATICS. 401 their arrows follow a continuous order, point to butt,around the perimeter ; which proves that one condition…
