Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 467

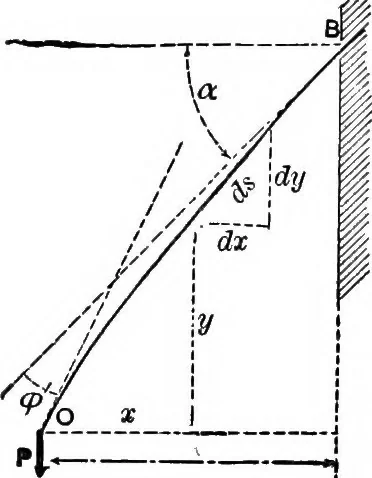

Pig. 408. 446 MECHANICS OF ENGINEEKING. the other. When the rib is unstrained (as it is supposedto be, on the left, its own weight being neglected; it is notsupposed sprung into place, but is entirely without strain)then the angle between the end-tangents has some value B d = j cl6= the sum of the… … Fig. 409. There must oe no hinge between 01 and £. d § 371. Example of Equation (I.) in Anal-d ysis.—A straight, homogeneous, pris-d. matic beam. Fig. 409, its own weight^ neglected, is fixed obliquely in a wall.After placing a load P on the free end,required the angle between the end-tangents.…
Mechanics, Applied · Strength of materials
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
