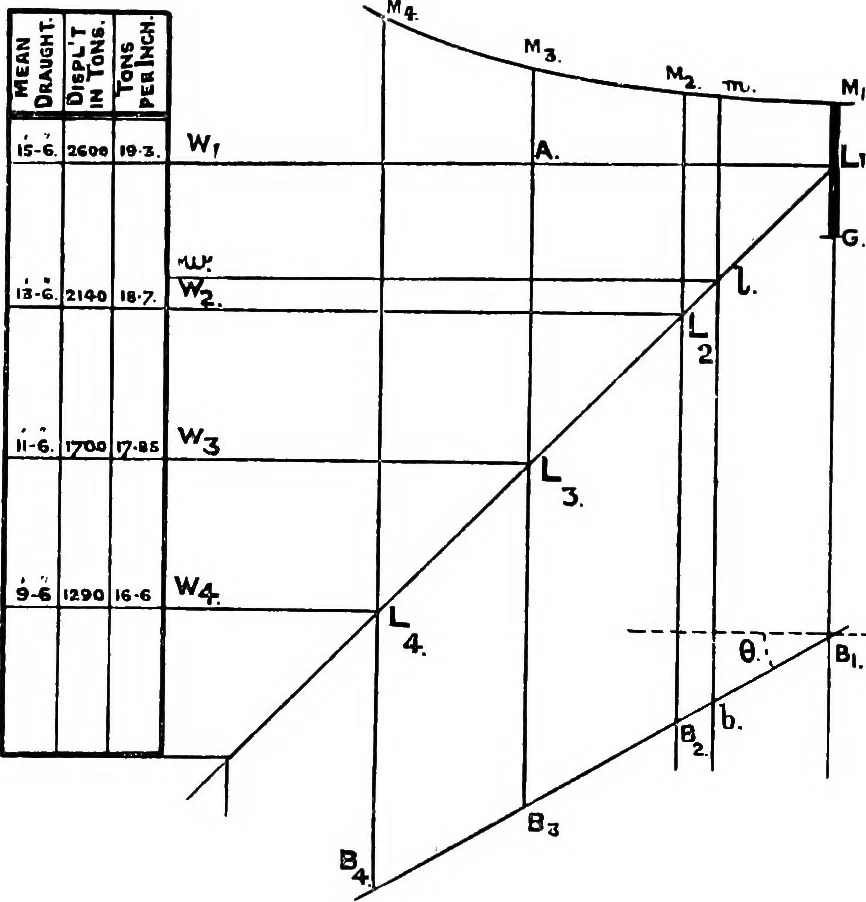

itecture. water-lines Nos. 2, 3, and 4, which are used for calculating thedisplacement, the proper distance apart, a convenient scalebeing \ inch to i foot. A line L1L4 is drawn cutting theselevel lines, and inclined to them at an angle of 45°. Throughthe points of intersection Li, L2, L3, Lj, are… … Fig. s6. calculated for each case. The methods employed for findingthe position of the C.B. at the different water-lines have alreadybeen dealt with in Chapter II. On the vertical lines are thenset down from the L.W.L. the respective distances of thecentres of buoyancy below the L.W.L. Thus LjBi is…
