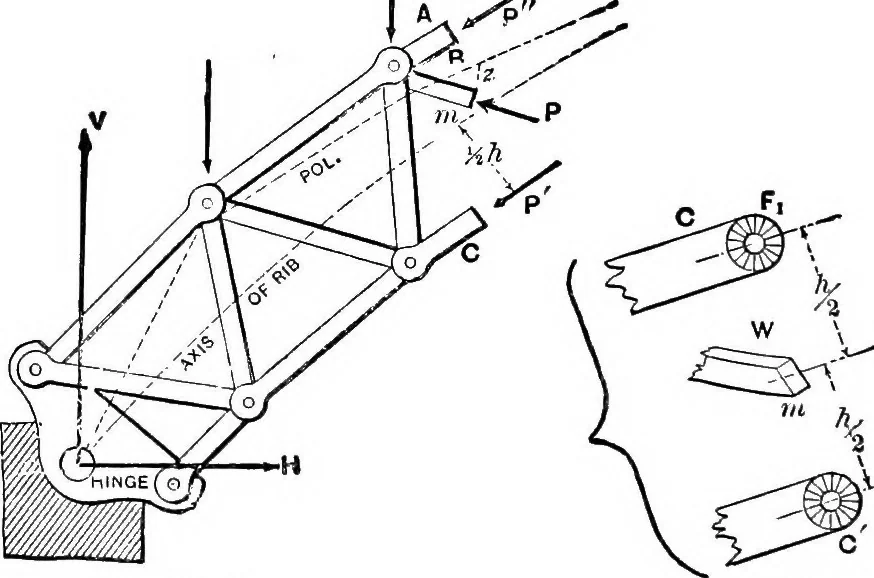

of wob, spacing of rivets,etc. 388 The Arch-Truss, or braced arch. An open-work truss, if of homogeneous design from end to end, may betreated as a beam of constant section and constant momentof inertia, and if curved, like the St. Louis Bridge and theCoblenz Bridge (see § 378, Class D), may be… … FlQ. 438. FlU. 437. Treating this curved axis as an arch-rib, in the usualway (see preceding articles), we obtain the spec, equil. pol.and its force diagram for given loading. Any plane ~\ tothe rib-axis, where it crosses the middle m of a web-member, cuts three pieces, A, B and C, the total com-…
