Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 59

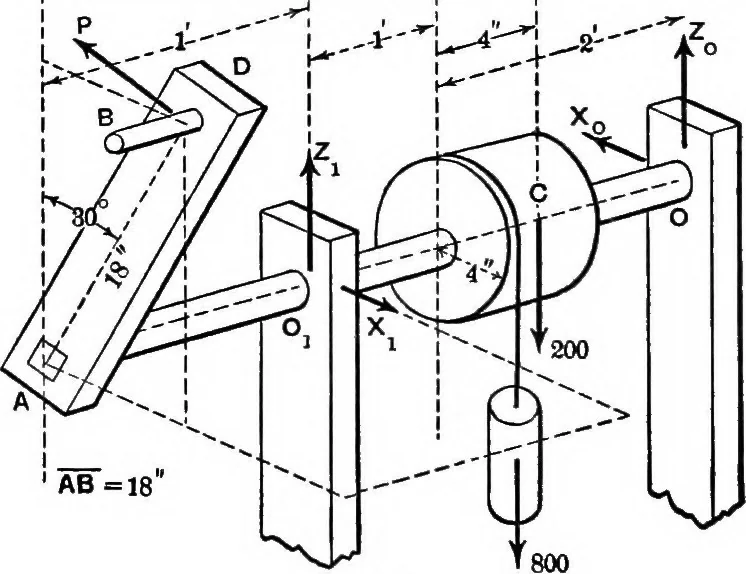

crank), and actingin a plane at rightangles to the shaft;and is to be of suchvalue as to preserveequilibrium when theweight of 800 lbs. issustained, as shown.The weight of theshaft, etc., is 200 lbs.,and its center of grav-ity is at C in the axis of the shaft. (Counterpoise for crank not shown.)The… … Fig. 43a. STATICS OF A RIGID BODY. 41 as shown. It is required to find the proper value for P and the amountand position of the two reactions. Solution.—^The seven forces shown in the figure (of which five are un-known) constitute a non-concurrent system of forces in space; in equi-librium. Since…
Mechanics, Applied · Strength of materials
