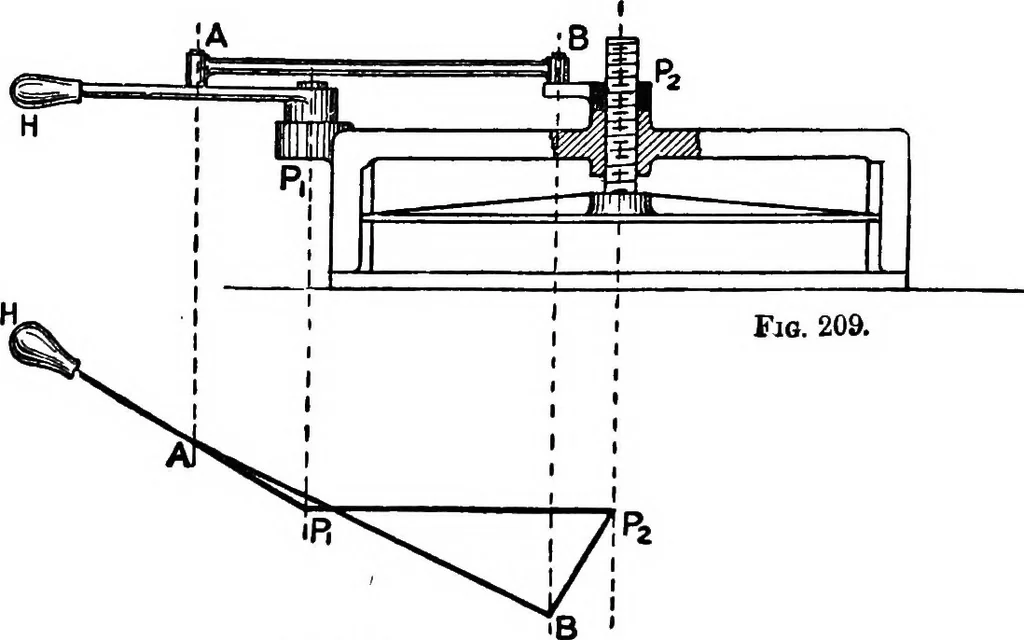

n approaching the configurationshown in the plan, a very large pressure is exerted at the pressplate by the application of a comparatively small force at thehandle. § 133. Rubber-stoppered Bottles.—A further familiar illustrationof a toggle joint is the arrangement sometimes adopted for… … Fig. 210. fixed, and the stopper is pivoted at Pg to the extremity of a stoutwire, which can be swung round Pj; whilst a looped wire (which can be readily disengaged)engages the other end ofthe stopper at B and ispivoted to a lever, PiH,turning about Pi. When thestopper is on the bottle. Pais…
